1000 KVA 10(6.6)0.4 KV Double High Voltage Transformer
  • Product Details

  • Product Tags

Product Introduction

This double high voltage transformer developed and manufactured by our company is two incoming line voltages 6.6kV and 10kV,with capacity of 1000KVA. The high voltage is converted by a no-load tap changer.After conversion, the connection group remains unchanged, the proportion of tap voltage remains unchanged, the winding turns of transformer are arranged reasonably, and the short-circuit resistance is strong. There are no idle turns in the two voltage operation states, but these two voltage can’t use in same time.

This transformer is equipped with a protective current transformer for each phase of high voltage. And each high-voltage bushing is equipped with an arc horn. The arc horn is usually connected between the energized wire and the ground and the protection device. When the voltage value reaches the specified action voltage, the arc angle acts immediately to limit the overvoltage amplitude and protect the insulating equipment through charge flow; The rear voltage value is normal, and the arc horn can quickly restore to the original state to ensure the normal power supply of the system.

We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!

Scope of Supply

Product: Liquid Filled Power Transformer

Rated Power: Up to 200 MVA

Primary Voltage: Up to 230 KV

The transformer can be designed according to customer’s requirements

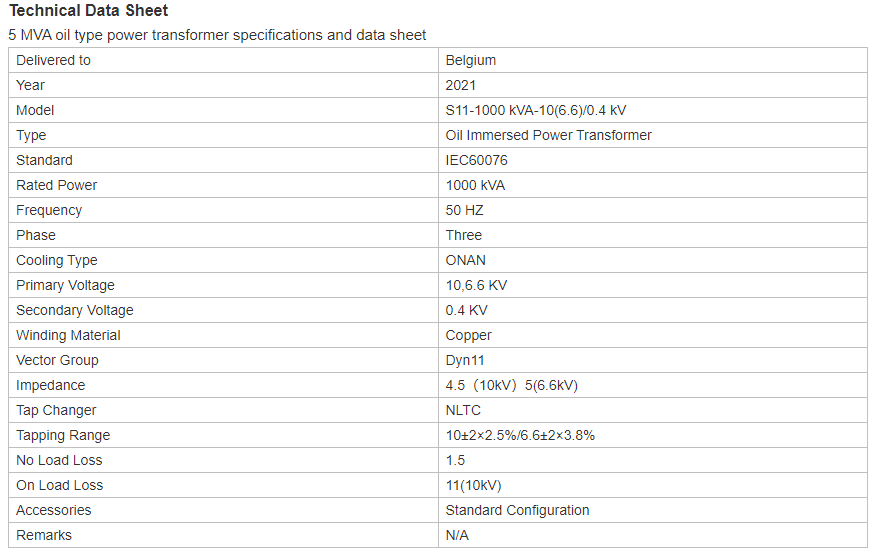

图一

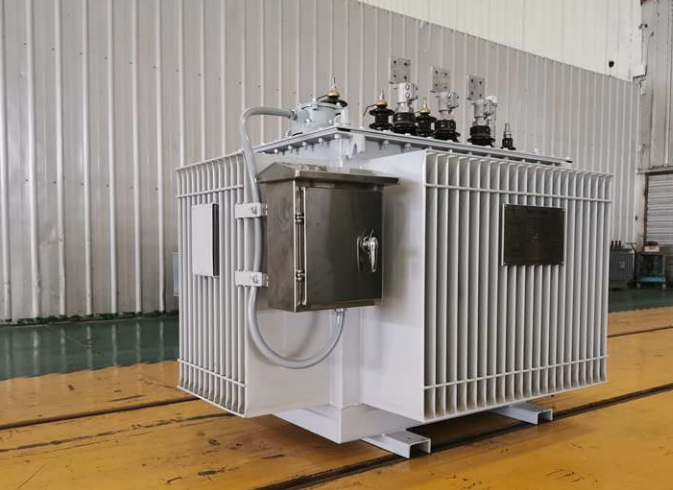

1733469603924

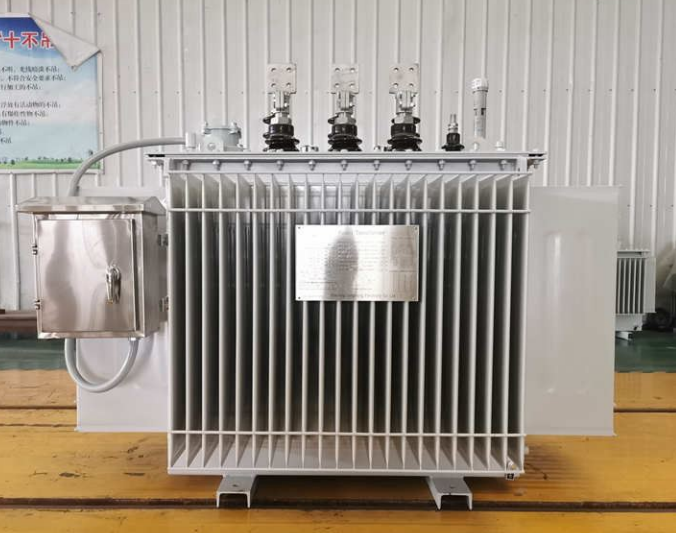

1733469563729
