Product Introduction

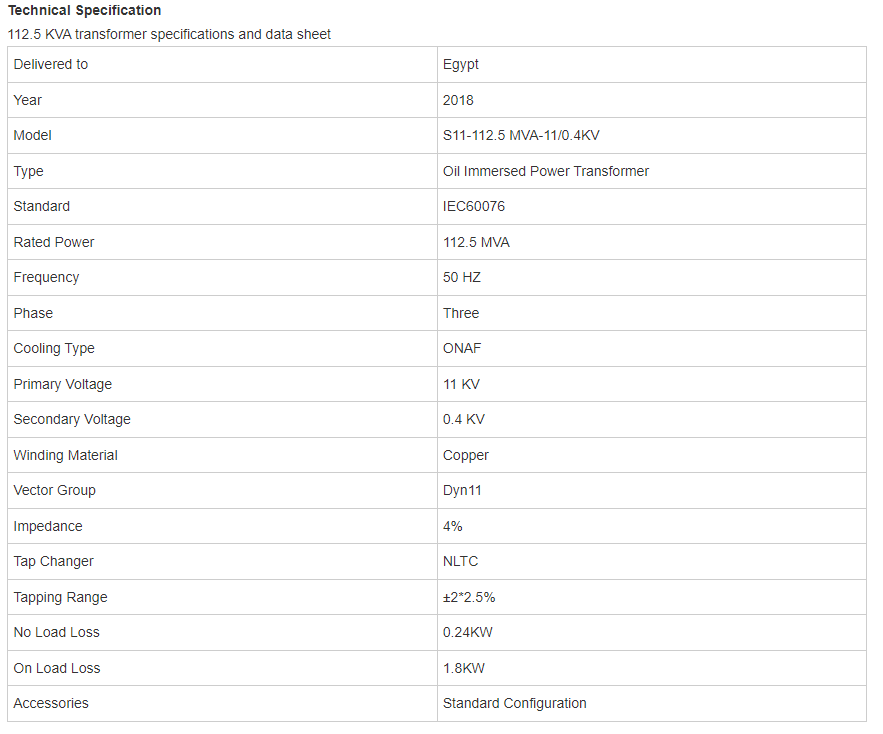

This 112.5 KVA transformer was delivered to Egypt in 2018. the rated power of the transformer is 112.5 KVA. The primary voltage of the transformer is 11 KV, and the secondary voltage is 0.4 KV. The transformer is a hermetically sealed transformer with corrugated tank. It has the advantages of low loss, low noise and high efficiency. Our 112.5 KVA transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.

Scope of Supply

Product: Oil Immersed distribution Transformer

Rated Power: Up to 5000 KVA

Primary Voltage: Up to 35 KV
