Product Introduction

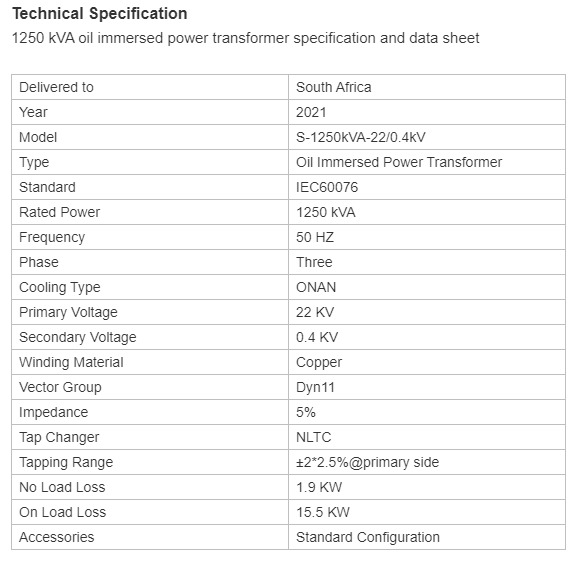

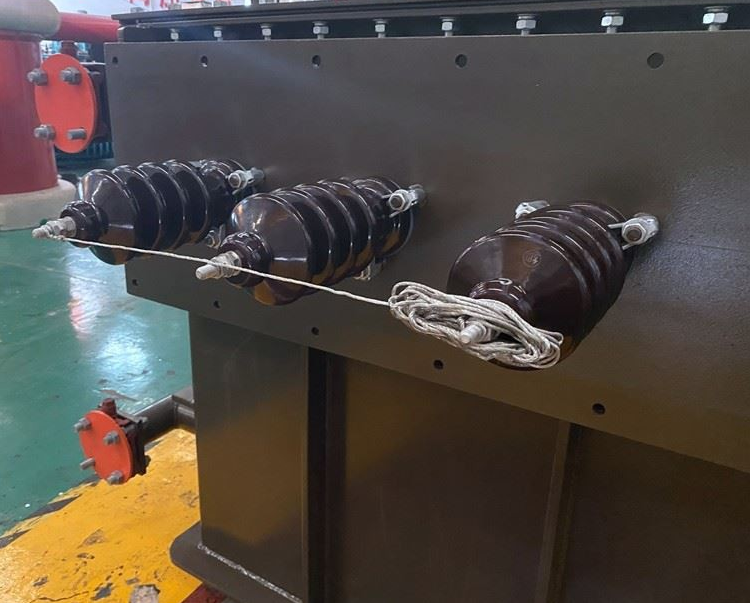

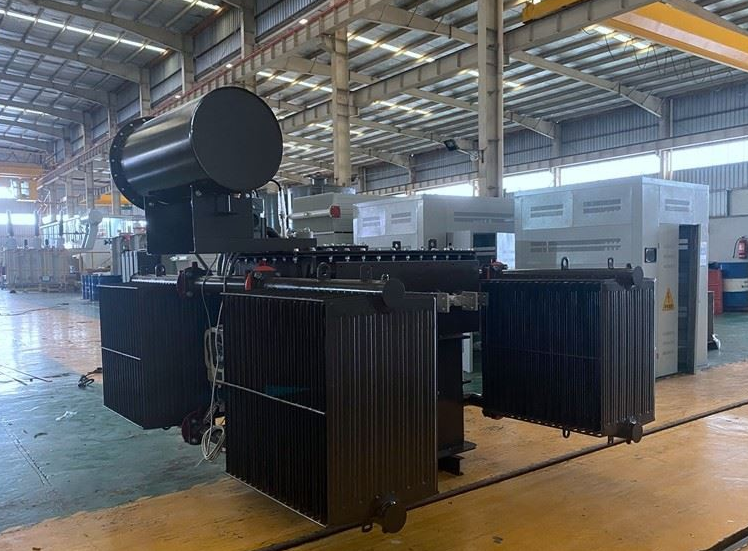

This 1.25 MVA transformer was delivered to South Africa in 2021 via a South Africa, the rated power of the transformer is 1250 KVA, the primary voltage of the transformer is 22kV, and secondary voltage is 0.4 kV Technical parameters are same as ordinary transformer as no special part. But this transformer has a special paint color. About the color of paint ,Generally we use RAL7035 spray paint, and this transformer is use RAL 7013..The 1250 kVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We  ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.

Scope of Supply

Product: Oil Immersed Power Transformer

Rated Power: Up to 200 MVA

Primary Voltage: Up to 230 KV
