Product Introduction

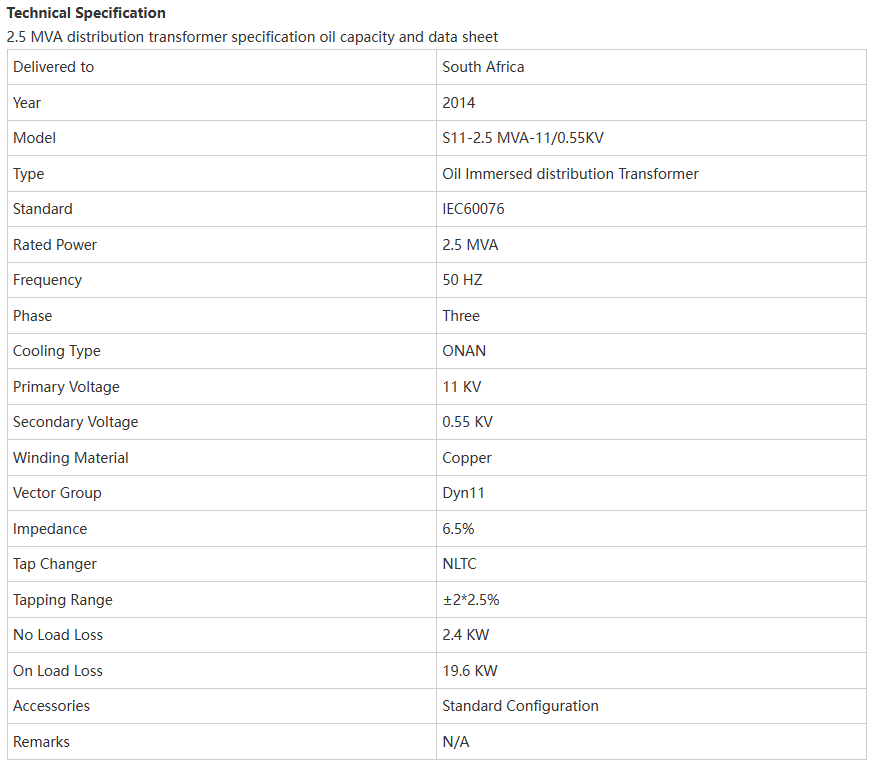

This 5 units of 2.5 MVA three phase transformer was delivered to a substation in South Africa in 2014. The rated power of the transformer is 2500 KVA. The primary voltage of the transformer is 11KV and secondary voltage is 0.55KV. The connection of high voltage is Delta, and low voltage is Star. The radiators adopted hot dip galvanized technology to prevent it from corrosion under heavy polluted area. The 2.5 MVA distribution transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.

Scope of Supply

Product: Oil Immersed distribution Transformer

Rated Power: Up to 5000 KVA

Primary Voltage: Up to 35 KV
