333 KVA Single Phase Pole Mounted Transformer-Platform Type
  • Product Details

  • Product Tags

Product Introduction

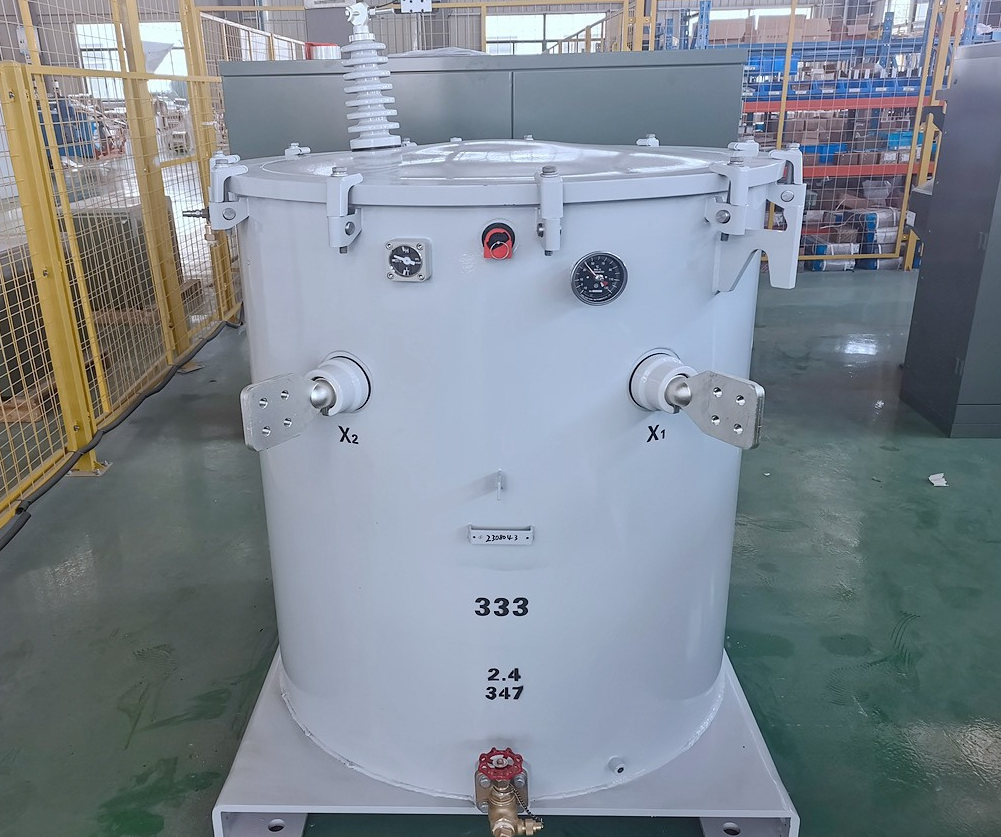

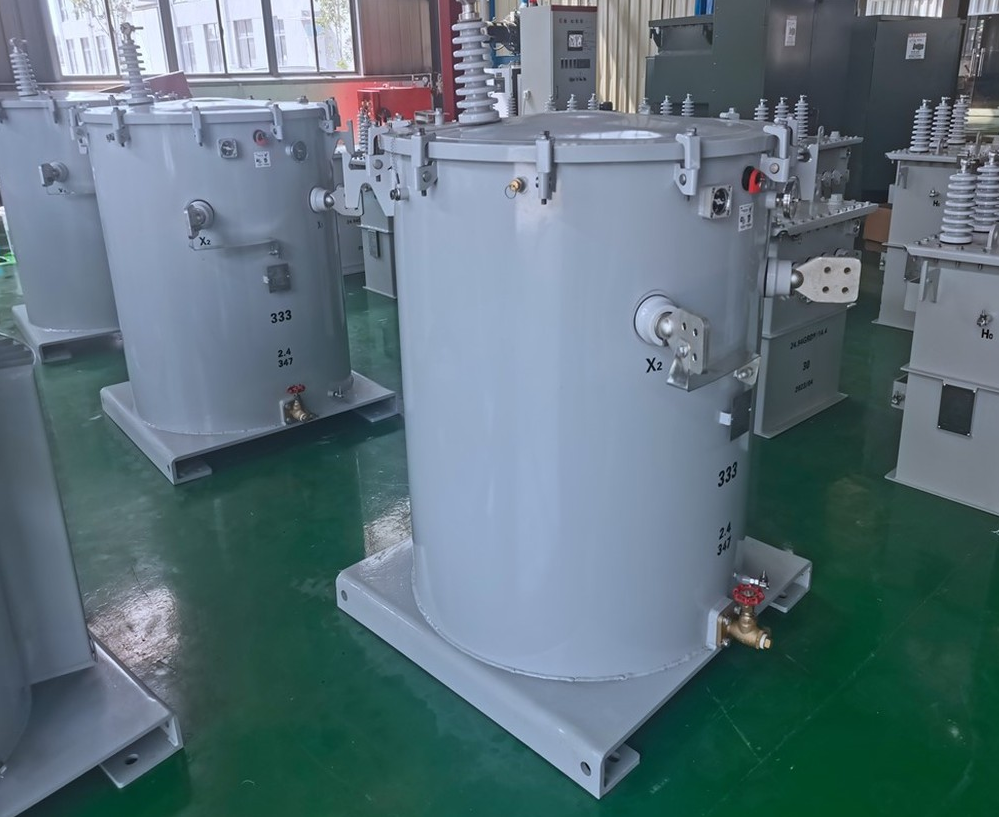

This 333 kVA Single Phase Pole Mounted transformer was delivered to Canada in 2023. It is an Platform type transformer, whose bottom has a platform to support it, The primary voltage is 4160Y/ 2400 V and the secondary voltage is 347V. The capacity is larger than the normal one. Designed according to standard CAN/CSA-C2.1, ANSI C57.12.28. This 333 kVA Single phase transformer with the weight of 2000 kg is put on a platform. We designed it with our advanced technology and high quality wingding material to achieve the on load loss 1.75 kW. The impedance is 4% with ONAN cooling method.

Anhuang ensure that every of our delivered units has undergone full acceptance testing. Our oil immersed power transformer is designed in accordance with CSA, IEEE, ANSI and other major international standards.

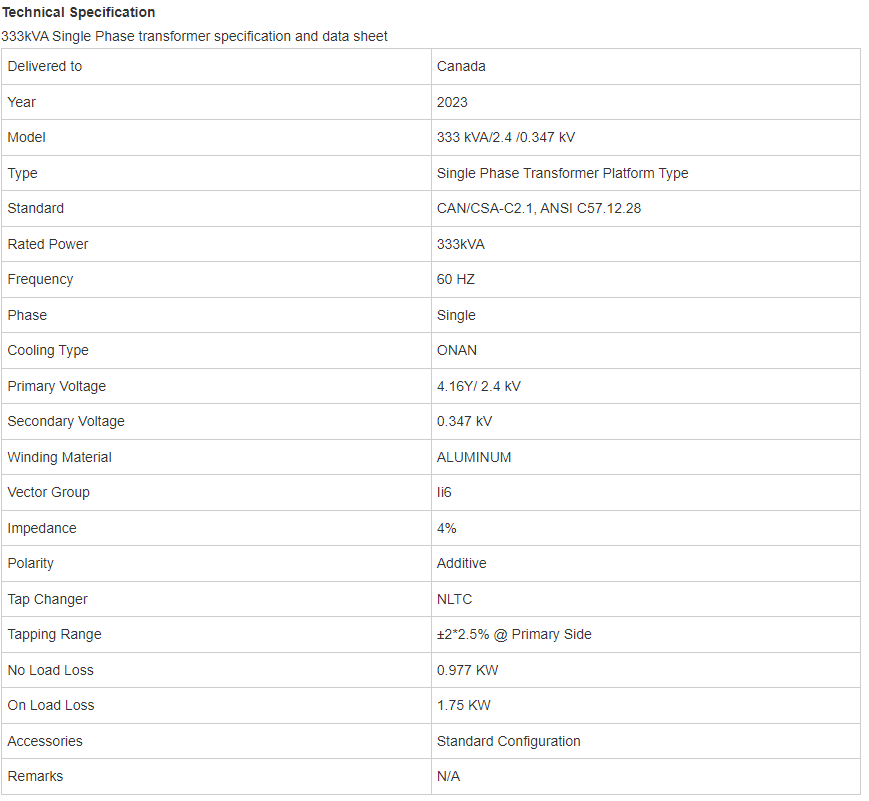

图一

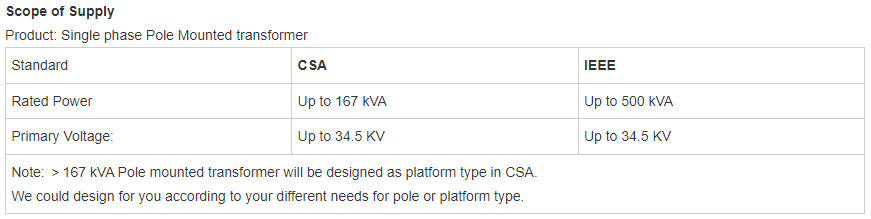

图二



1733462811808



1733462757609
