Overview:
The contacts of a vacuum circuit breaker are usually made of conductive material and are used to open or close a circuit during switching operation. The functions of the contacts are similar to those in traditional circuit breakers, but using a vacuum circuit breaker can reduce arcing and improve arc extinguishing performance.
Model: AHNG407

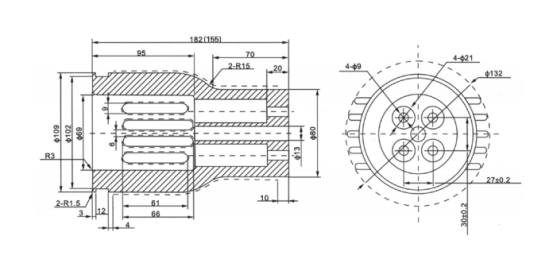

Dimension:
Technical data:
Rated current | 4000A |
Material | Red Copper |
Application | vacuum circuit breaker(VS1-12/4000A) |
