Product Introduction

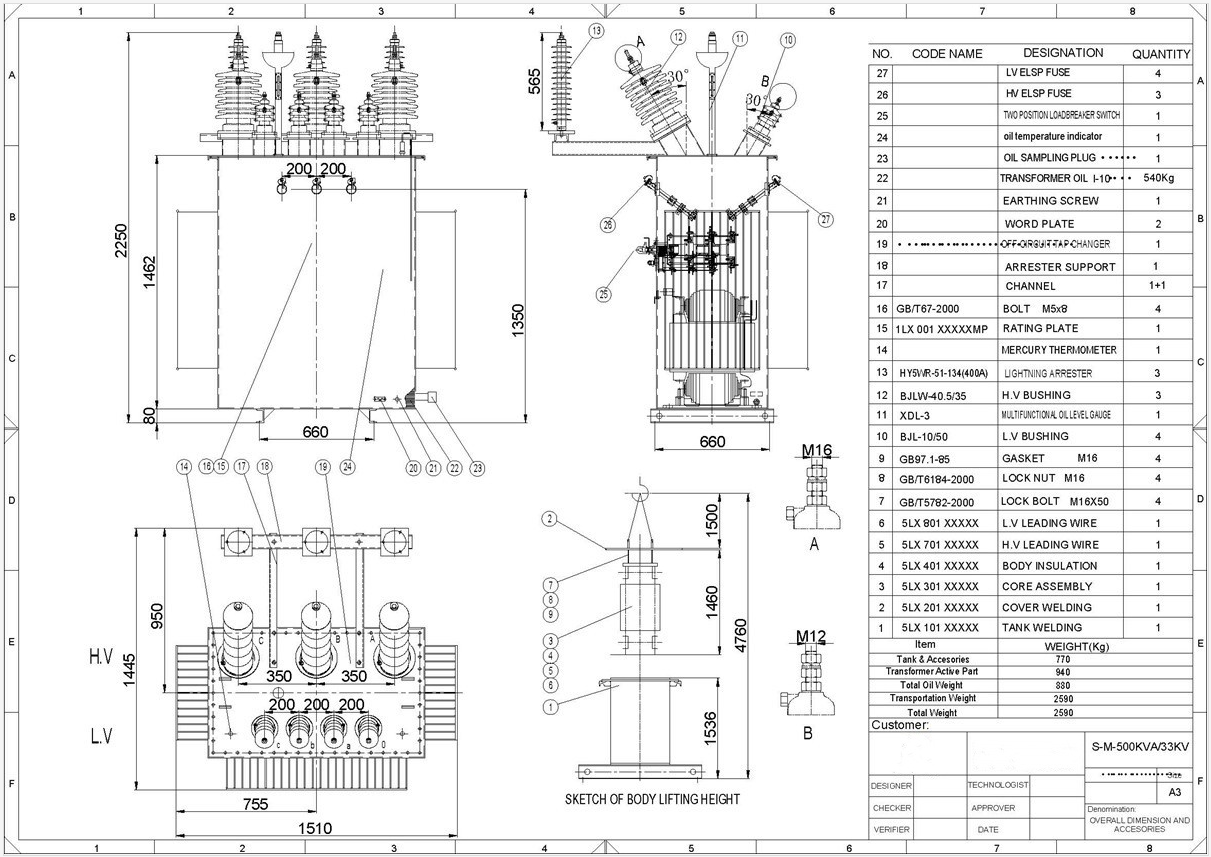

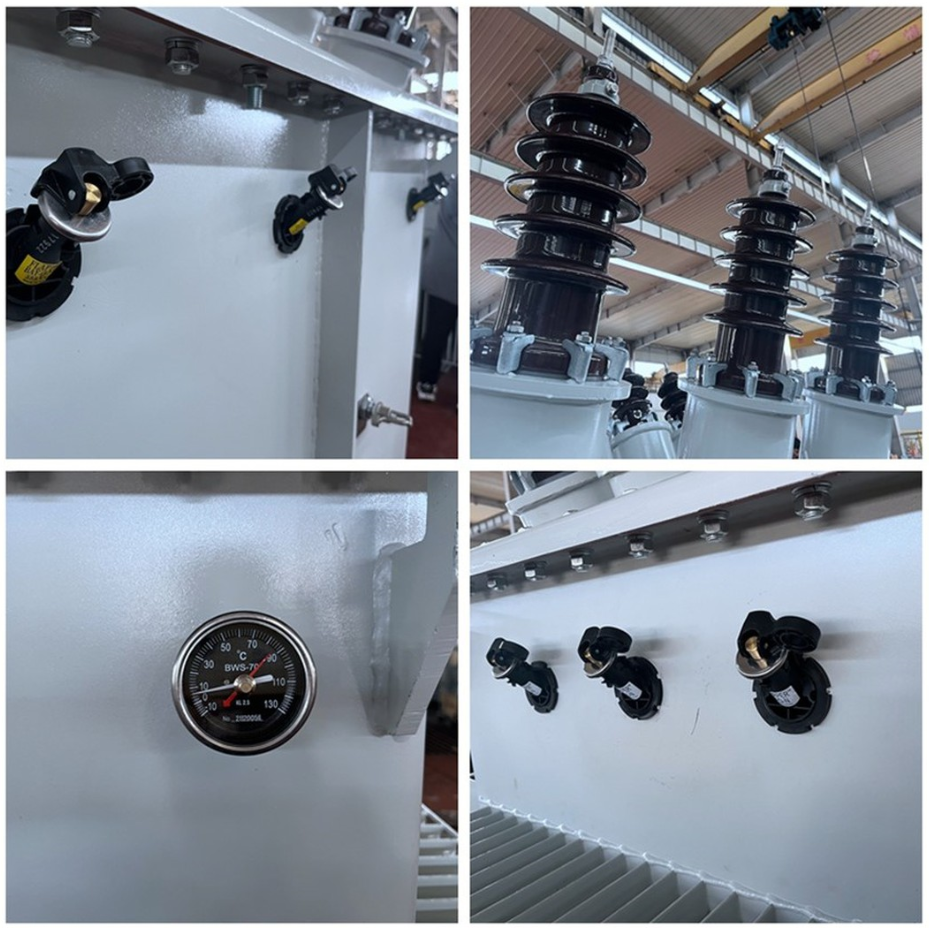

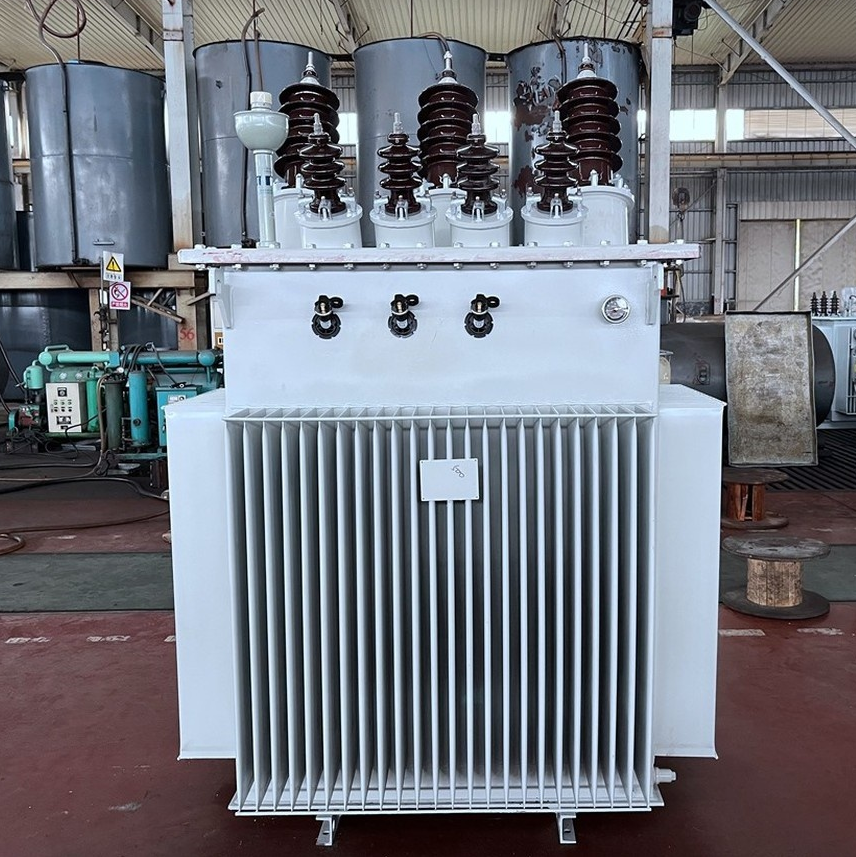

This 500kVA distribution transformer was delivered to a Forest electricity in Trinidad and Tobago in 2023, the rated power of the transformer is 500kVA, the primary voltage and secondary voltage of the transformer are 33/6.6kV. The transformer is equipped with high and low voltage fuses for better protection. Because of the fuse, the height of the transformer is much higher than that of the ordinary transformer. In addition, the transformer high and low voltage bushings are tilted at a 45° Angle to better connect the overhead cables. The 500kVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

Anhuang ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international

Scope of Supply

Product: Oil Immersed Power Transformer

Rated Power: Up to 200 MVA

Primary Voltage: Up to 230
