Product Introduction

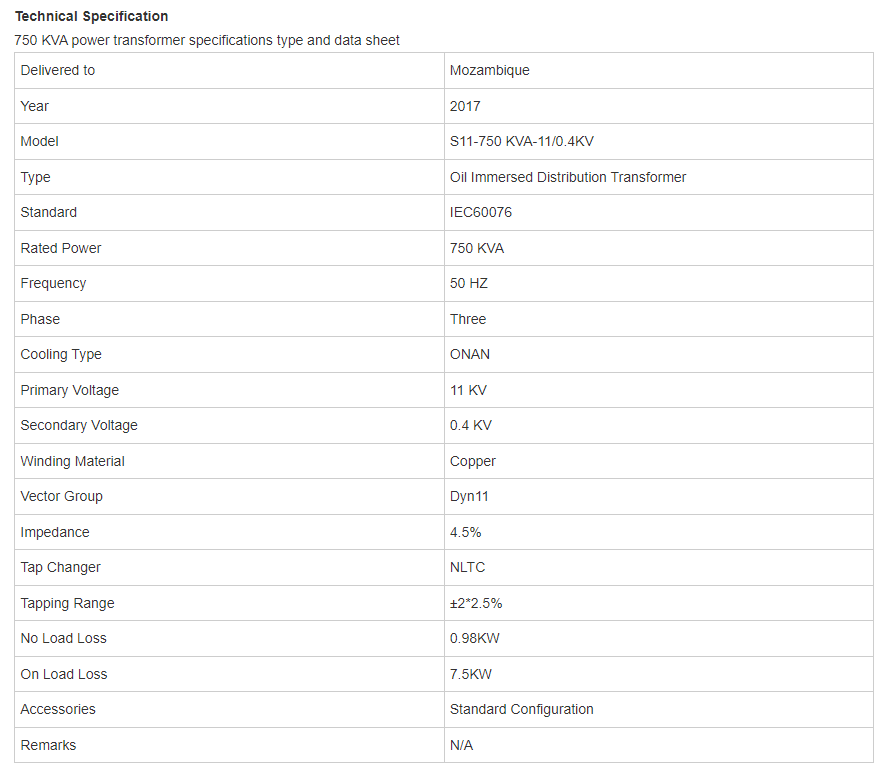

This 750 KVA distribution transformer was delivered to Mozambique in 2017, the rated power of the transformer is 750 KVA. This 750 KVA Step Down transformer 11kv to 0.4kv, the primary voltage is 11kv, the secondary voltage is 400v. This oil cooled transformer used mineral oil, which has good insulation, good heat dissipation and so on. Our 750 KVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.

Scope of Supply

Product: Oil Immersed distribution Transformer

Rated Power: Up to 5000 KVA

Primary Voltage: Up to 35 KV
