Product Introduction

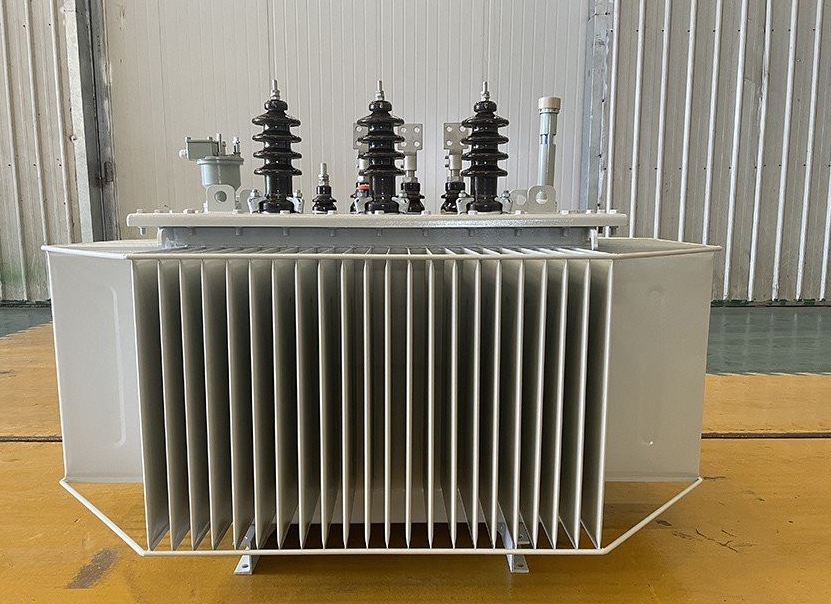

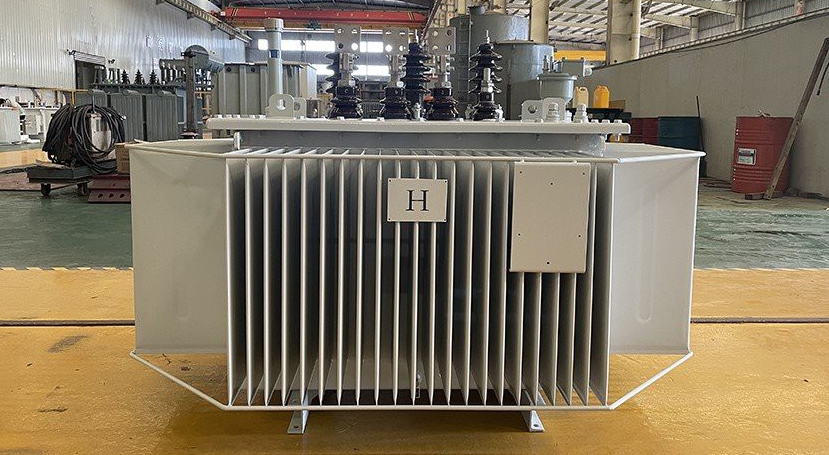

The 750 kVA power distribution transformer was delivered to Guyana in 2022. The transformer is used for power supply in small transformer factory.

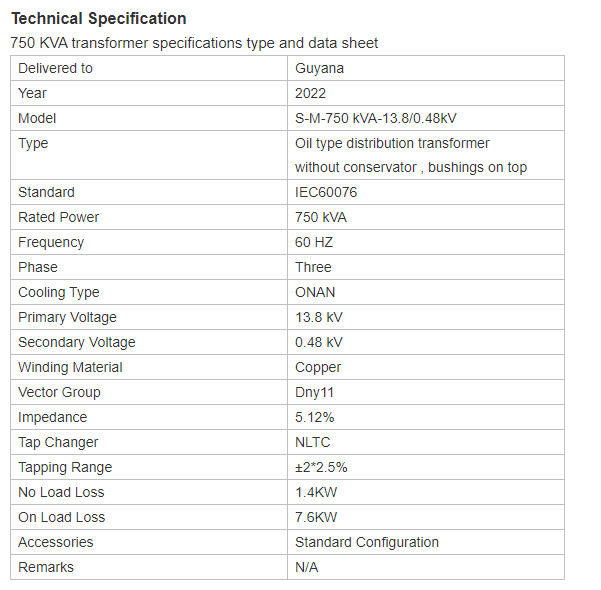

The rated power of the transformer is 750 kVA with ONAN cooling. The primary voltage is 13.8kV with ±2*2.5% tapping range (NLTC), the secondary voltage is 0.48kV, they formed a vector group of Dyn11.

Our 750 KVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure that each one of our delivered units has undergone rigorous full acceptance testing. We provide one-package service from consulting, quoting, manufacturing, installation, commissioning, training to after sale services, our products are now operating in more than 50 counties in the world. We aim to be your most reliable supplier as well as your best partner in business!

Scope of Supply

Product: Oil Immersed distribution Transformer

Rated Power: Up to 5000 KVA

Primary Voltage: Up to 35 KV
