Product Introduction

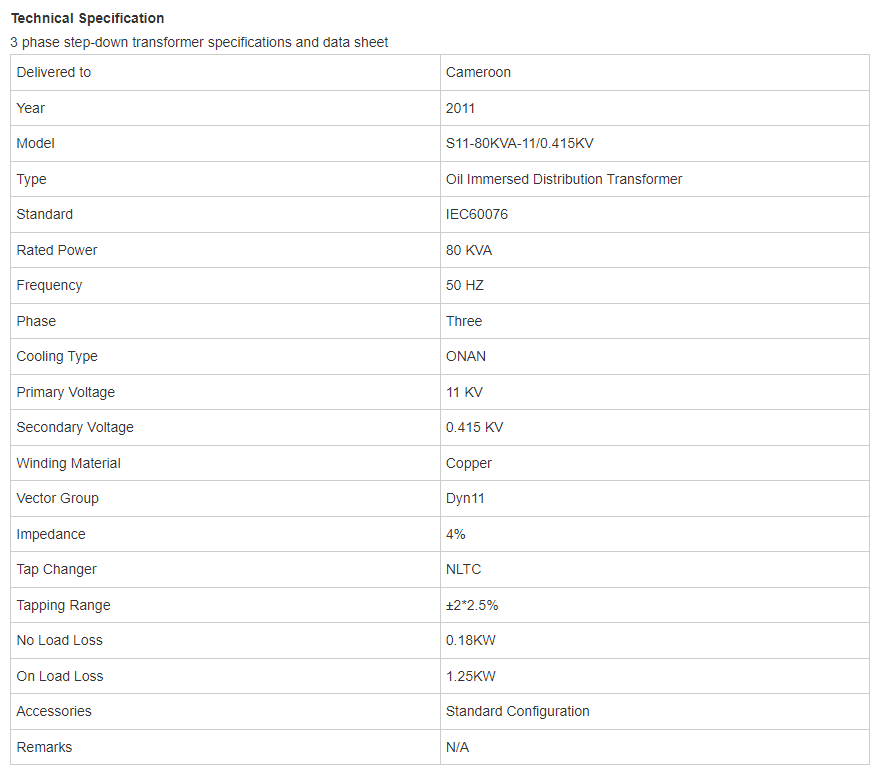

This 80 KVA transformer was delivered to Cameroon in 2011. the rated power of the transformer is 80 KVA. It is a Step-down transformer 11KV to 0.415KV, the primary voltage is 11kv, and the secondary voltage is 0.415kv. It is an oil filled transformer. the transformer is cooled by oil circulation. Our 80 KVA transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI, and other major international standards.

Scope of Supply

Product: Oil Immersed distribution Transformer

Rated Power: Up to 5000 KVA

Primary Voltage: Up to 35 KV
