Product introduction:

ZW32-40.5F(M) outdoor high-voltage intelligent (permanent magnet) vacuum circuit breaker is mainly composed of integrated solid-sealed pole, current transformer, operating mechanism and box. A disconnect switch can be installed. This type of circuit breaker has a miniaturized design, and the shell is made of high-quality steel box. Current transformers can be selected according to user needs.
The device is mainly used in medium-voltage overhead line power grids for dividing and combining load currents, overload currents and short-circuit currents.

Normal conditions of use:
Ambient temperature: not higher than +40ºC, not lower than -15ºC;
Air relative humidity: the daily average is not more than 95%, and the monthly average is not more than 90%;
The altitude does not exceed 1000 meters;
Earthquake intensity does not exceed 8;
A place free from fire, explosion, serious pollution, chemical corrosion and severe vibration.

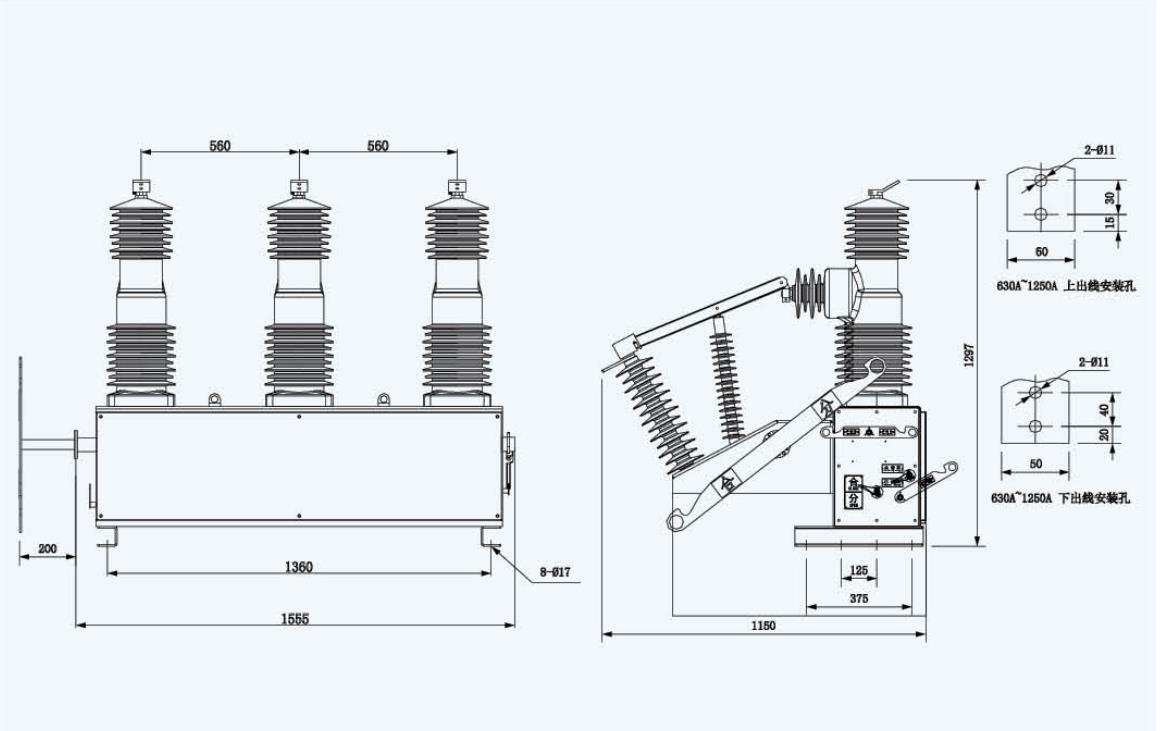

Product Drawing:.
