Product Introduction

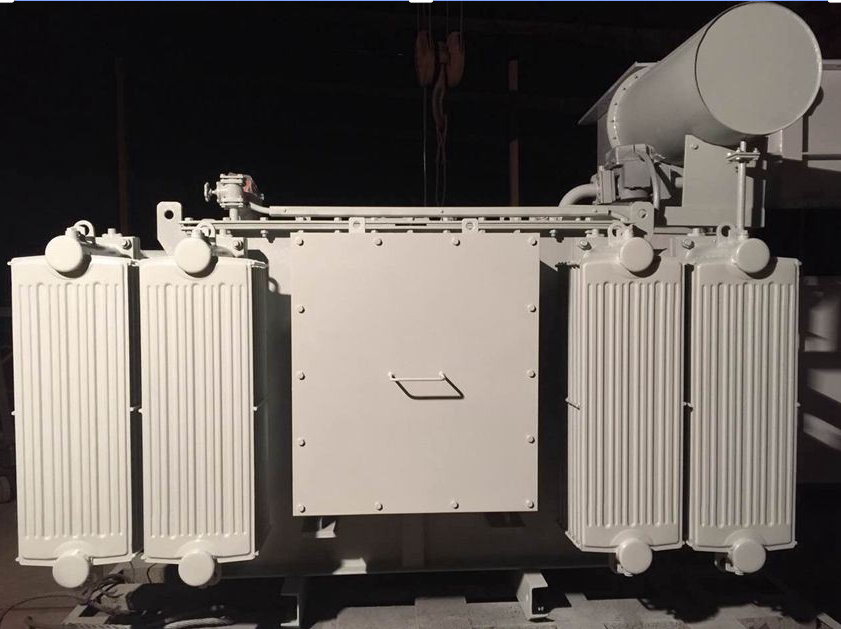

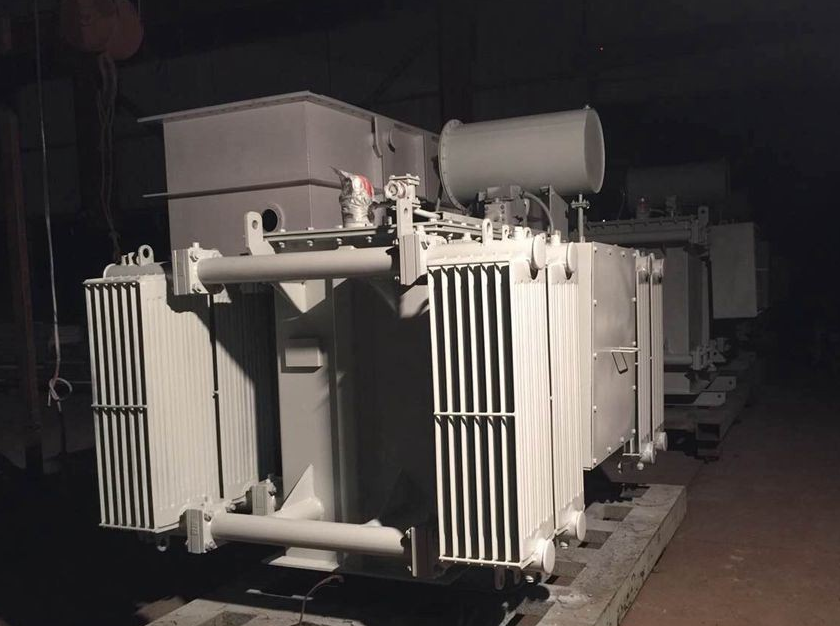

This 1 MVA oil type distribution transformer was delivered to South Africa in 2015, the rated power of the transformer is 1000 KVA. the primary voltage of the transformer is 11 KV and secondary voltage is 0.415 KV. Our 1 MVA electrical transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.

Scope of Supply

Product: Oil Immersed distribution Transformer

Rated Power: Up to 5000 KVA

Primary Voltage: Up to 35 KV
