Product Introduction

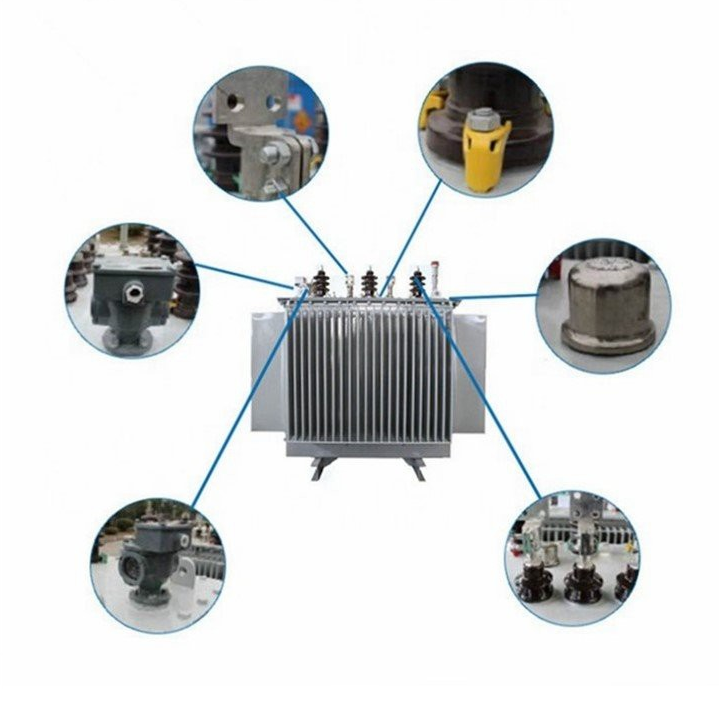

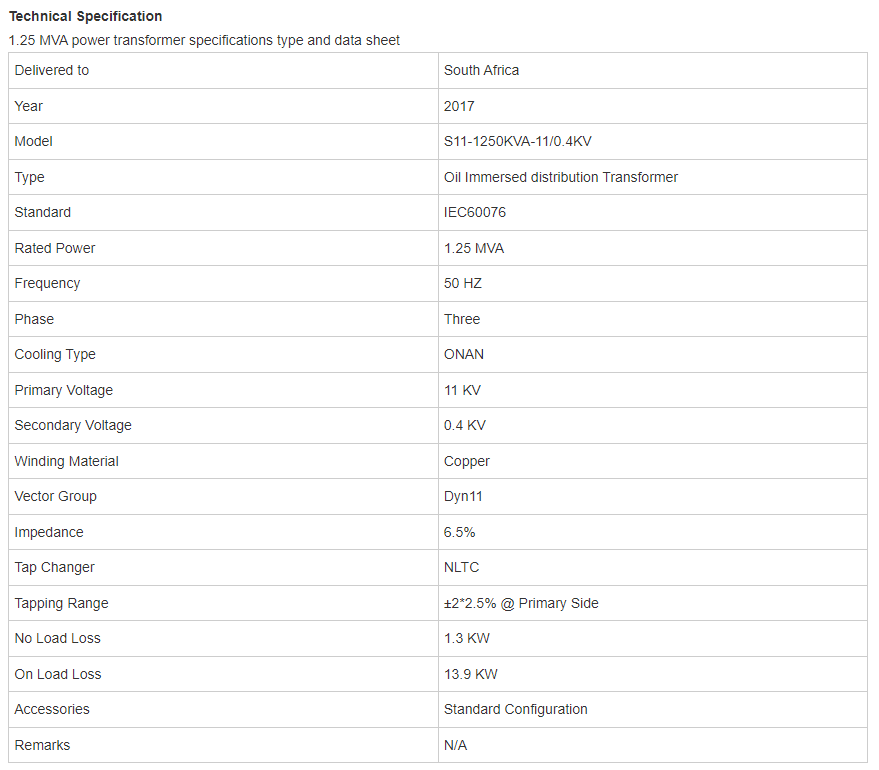

This 1.25 MVA power supply transformer was delivered to South Africa in 2017, the rated power of the transformer is 1250KVA. It is a step-down transformer 11KV to 0.4KV, the primary voltage is 11KV, the secondary voltage is 0.4KV. The vector group of the transformer is Dyn11. This transformer is fully sealed and oil immersed, which has fully sealed, no oil leakage, maintenance free, long life, and other advantages. Our 5 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.

Scope of Supply

Product: Oil Immersed distribution Transformer

Rated Power: Up to 5000 KVA

Primary Voltage: Up to 35 KV
