Product Introduction

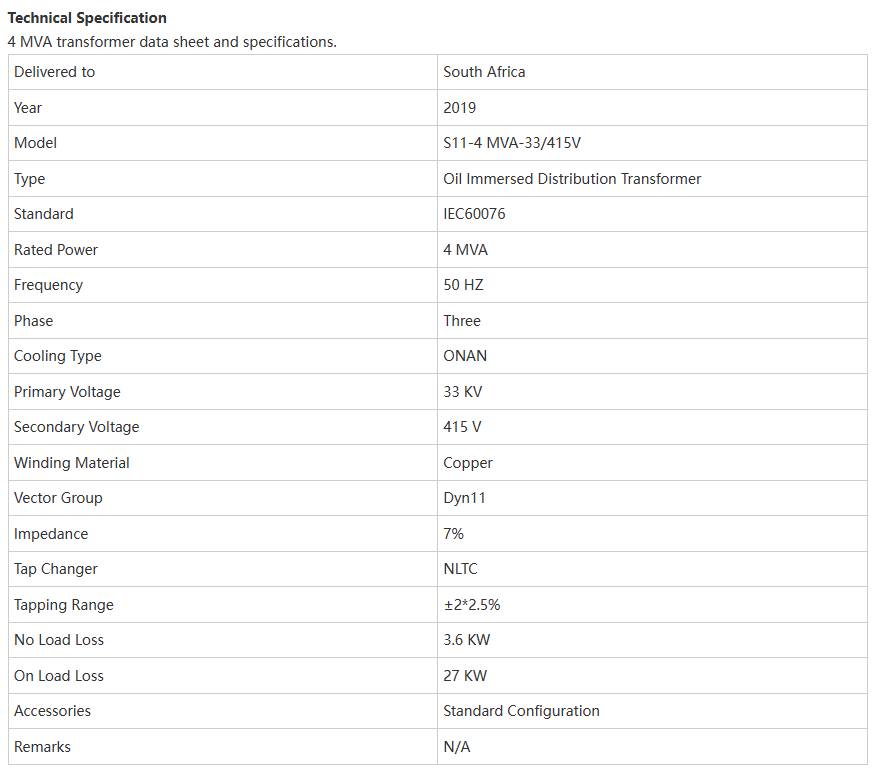

This 4 MVA Transformer was delivered to South Africa in 2019. the rated power of the transformer is 4000 KVA. It is a Step-down transformer 33KV to 415V, the primary voltage is 33KV, the secondary voltage is 415V. We use copper as our winding material, Copper has the advantages of low resistivity and good ductility, can make the transformer transmit voltage better. Our 4 MVA transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.

Scope of Supply

Product: Oil Immersed distribution Transformer

Rated Power: Up to 5000 KVA

Primary Voltage: Up to 35 KV
