Product Introduction

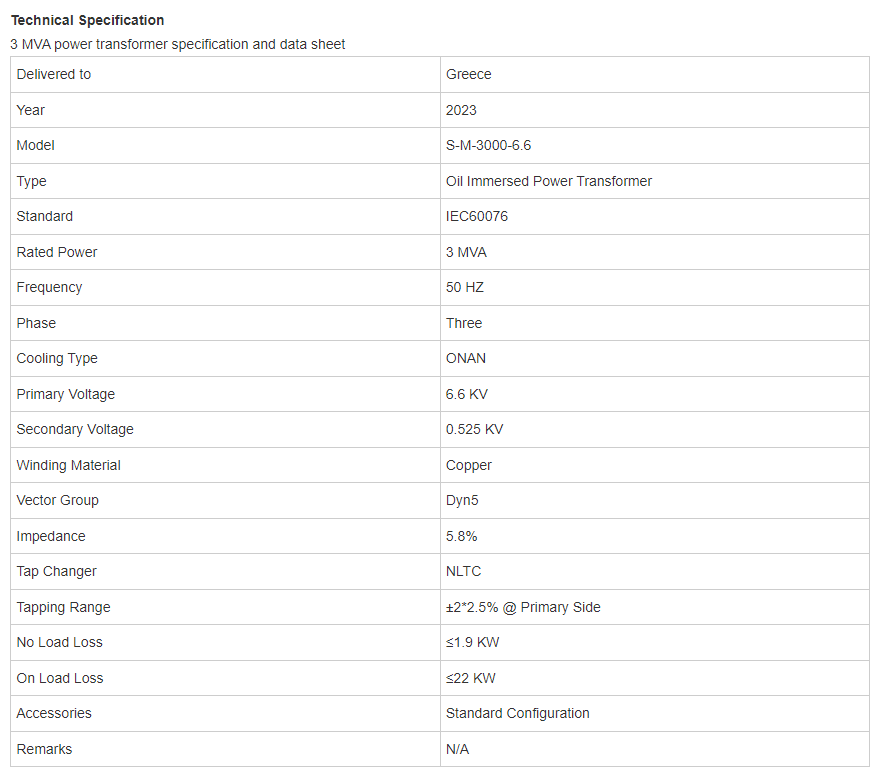

This 3 MVA oil immersed transformer was delivered to Greece in 2023 via a Greece trade company, the rated power of the transformer is 3000 KVA, the primary voltage and secondary voltage of the transformer 6.6/0.525kV, The no-load loss of the transformer is required to meet the Tier2 energy efficiency standard, so the loss is very low. The 3 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

Anhuang ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, our oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.

Scope of Supply

Product: Oil Immersed Power Transformer

Rated Power: Up to 200 MVA

Primary Voltage: Up to 230 KV
