Product Introduction

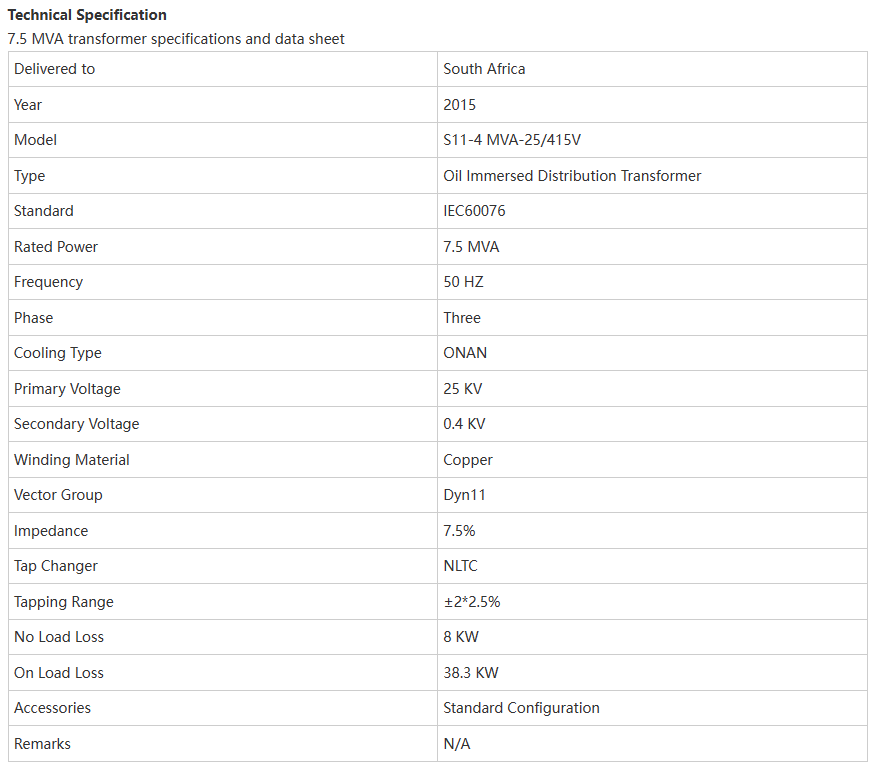

This 7.5 MVA 25KV distribution transformer was delivered to South Africa in 2015, the rated power of the transformer is 7500 KVA. This 7500 KVA Step Down transformer 25kv to 0.4kv, the primary voltage is 25kv, the secondary voltage is 0.4kv. The oil-immersed power transformer has the advantages of low loss, low noise, and high efficiency, which can achieve good energy saving effect and reduce pollution. Our 7.5 MVA power transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

We ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.

Scope of Supply

Product: Oil Immersed distribution Transformer

Rated Power: Up to 5000 KVA

Primary Voltage: Up to 35 KV
