Date：03-31-2022

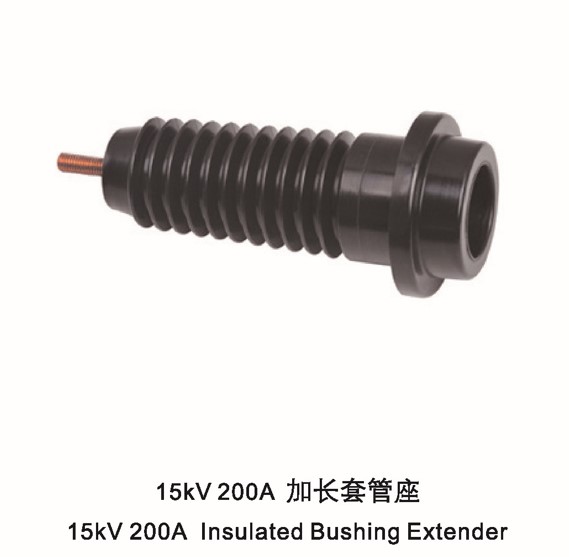

15kV 200A Insulated Bushing Extenders designed for transformers, outdoor surrounding cable supply cabinet and switch cabinet.Insulated for the 200A outgoing line. 200A 15kV Insulated Bushing Extender connect with bushing insert, rotatable feed thru insert or surge arrester insert.
The Bushing Well is molded using high quality insulating material EPDM, when mated with comparably rated products, it provides a fully shielded insulating connection.
KIT CONTENTS:
Insulated bushing extender
Covering cap
Gasket
Clearing paper
Installation instruction sheet
Quality certificate
