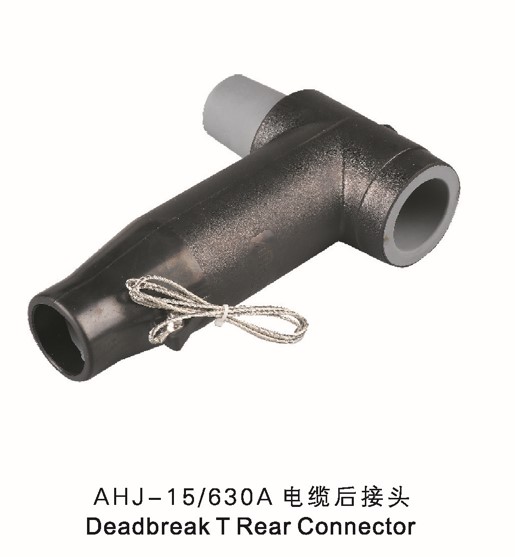

15KV 630A Deadbreak T Rear Connector

15KV 630A Deadbreak T Rear Connector can be use together with the T Fore connector and some other back connector, it can be provide more branches, and they can not together with the bushing directly, cover the back protection cap on the end of the blanking cover.

Features:

Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug.
Can be used under the circumstances
Built-in capacitance test point to determine the circuit status or install a fault indicator.
No minimum phase clearance requirements.
Mounting can be vertical, horizontal, or any angle in between.

Kit Contents:
630A Deadbreak T body
Adaptor
Conductor cable lug
Connect lug
Two head screw
Silicone Lubricant,Clearing Paper
Installation Instruction Sheet
Quality Certificate

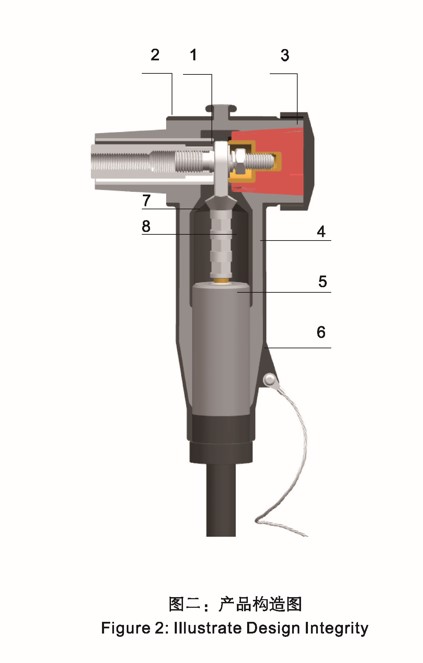

Product Structurer:

1 TWO HEAD SCREW: To make sure have a good contact with the apparatus bushing.

2,INSULATION: Molded EPDM insulating rubber is formulated and mixed in-house to ensure high quality.

3,INSULATING PLUG: Molded epoxy insulating plug provides excellent electrical, thermal and mechanical reliability.

4,SEMI-CONDUCTIVE INSERT: Molded EPDM conducting rubber screen controls electrical stress.

5,STRESS RELIEF: The configuration of the outer screen and the cable adapter provide cable stress relief.

6,GROUNDING EYE: Molded into the external screen for connection of an earthing wire.

7,SEMI-CONDUCTIVE SHIELD: Molded EPDM conducting rubber mates with the cable screen to maintain screen continuity and ensure that the assembly is at earth potential.

8,CONDUCTOR CABLE LUG: Aluminum compression connector is sized to ensure a cool running connector with maximum current transfer
