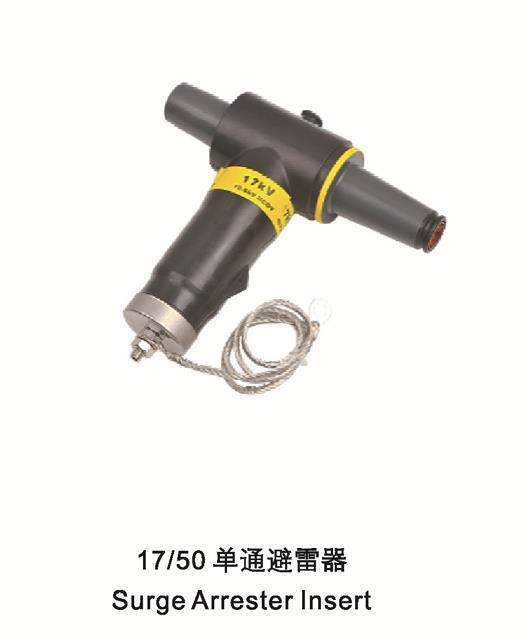

17/50 Surge Arrester Insert

Date:04-01-2022

17/50kV Surge Arrester Insert is widely used on medium voltage network, such as transformers switchgears and cable and others, Used together with load break cable accessories such as bushing elbow connector and insulated protective cap.

111

KIT CONTENTS:

Surge arrester insert
Hex wrench
Silicone lubricant
Clearing paper
Installation instruction sheet
Quality certificate
Testing report

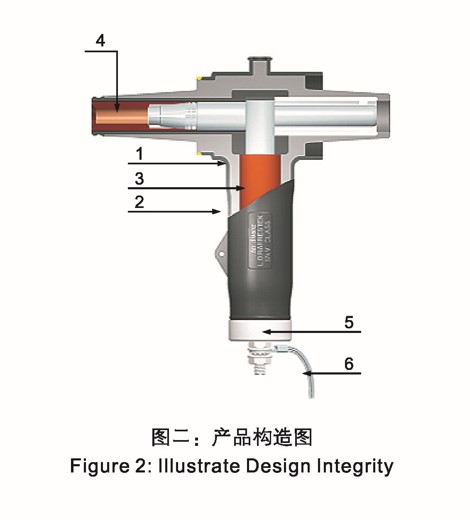

Product Structure:

1, EPDM INSULATION: High quality sulfur cured EPDM insulation is mixed and formulated in-house for complete control of insulation rubber characteristics.
2,SEMI-CONDUCTIVE SHIELD: Molded semi-conductive EPDM shield meets requirements of ANSI/IEEE Standard 592.
3. ARRESTER CORE: Compose of the zinc oxide lightning arrester valve slice which through special process treatment.
4, ARC SNUFFER ASSEMBLY: Arc-ablative plastic produces arc extinguishing gas during load break switching operations.
5, PROBE: Probe provides reliable conductive path with mating female contacts.
6, GROUNDING WIRE:(Optional for larger grounding wire) Used for impulse voltage effective after leads to grounding position
