24kV Loadbreak Elbow Surge Arrester in Medium Voltage Networks

The Loadbreak Elbow is an essential component in medium-voltage electrical distribution networks, enabling safe, secure connections and disconnections of cables under load conditions. Often used in underground and outdoor power distribution systems, loadbreak elbows are designed to maintain network integrity, ensuring continuous service without requiring de-energization for routine maintenance or troubleshooting.

The 24kV Loadbreak Elbow Surge Arrester adds a layer of critical protection to medium voltage networks by guarding against damaging voltage surges. Companies like Anhuang specialize in high-quality elbow surge arresters that comply with IEEE386 and IEC standards, ensuring safety, durability, and reliable performance.

In this article, we’ll delve into the purpose, features, and applications of loadbreak elbows and explain how surge arresters enhance the resilience of medium voltage systems.

1. What Is a Loadbreak Elbow?

A Loadbreak Elbow is a type of high-voltage connector designed for load-interrupting applications in medium voltage networks. Its insulated structure allows it to be safely connected and disconnected from power equipment under load conditions. This functionality is vital for system operators as it allows maintenance and troubleshooting without cutting off power to the entire network.

Key features of a loadbreak elbow include:

• Load-interrupting capability: Allows for the safe disconnection of power equipment even when energized.
• Insulation and shielding: Prevents accidental contact with high voltage, ensuring operator safety.
• Compatibility with various equipment: Suitable for transformers, switchgear, and cables within medium voltage networks.

2. Features of the 24kV Loadbreak Elbow Surge Arrester

The 24kV Loadbreak Elbow Surge Arrester incorporates a surge arrester within the loadbreak elbow, providing protection against harmful voltage surges. This model is designed specifically for 24kV applications, making it ideal for use in medium voltage networks where voltage transients from sources such as lightning strikes and switching operations are common.

Key features of the 24kV Loadbreak Elbow Surge Arrester include:

• High-Quality Silicone Rubber Housing: Provides excellent insulation and durability in outdoor environments.
• Surge Protection: Limits voltage spikes, protecting equipment such as transformers, switchgear, and cables.
• Compliance with IEEE386 and IEC Standards: Ensures the highest level of quality and reliability.
• Compact Design: Fits seamlessly into existing systems, with easy installation on 200A bushings.
• 34kV Surge Arrester Insert: Available as an option, suitable for higher voltage ratings and often used in diverse equipment setups.

By limiting incoming voltage surges and preventing dangerous overvoltage events, the 24kV loadbreak elbow surge arrester offers robust protection for medium voltage assets.

3. Applications of the 24kV Loadbreak Elbow Surge Arrester

The 24kV Loadbreak Elbow Surge Arrester is suited for various medium voltage network applications and offers reliable protection for equipment against transient voltage surges. Typical applications include:

• Transformers: Protects transformer windings and insulation from transient voltage damage.
• Switchgear: Prevents flashovers and dielectric breakdown due to voltage surges.
• Cables: Minimizes the risk of insulation failure in cables exposed to high transient voltages.

By managing voltage transients, the loadbreak elbow surge arrester extends the life of these critical components, reduces maintenance needs, and improves network reliability.

4. Standards Compliance: IEEE386 and IEC

Anhuang’s loadbreak elbow surge arresters adhere to IEEE386 and IEC standards, ensuring they meet strict requirements for performance and safety in medium voltage systems.

• IEEE386 Standards: These standards outline specifications for separable insulated connectors, like loadbreak elbows, used in medium voltage power distribution systems.
• IEC Standards: Compliance with IEC standards guarantees international compatibility and quality, making Anhuang’s products suitable for various global markets.

Compliance with these standards assures network operators that the 24kV loadbreak elbow surge arrester is dependable and suitable for critical applications.

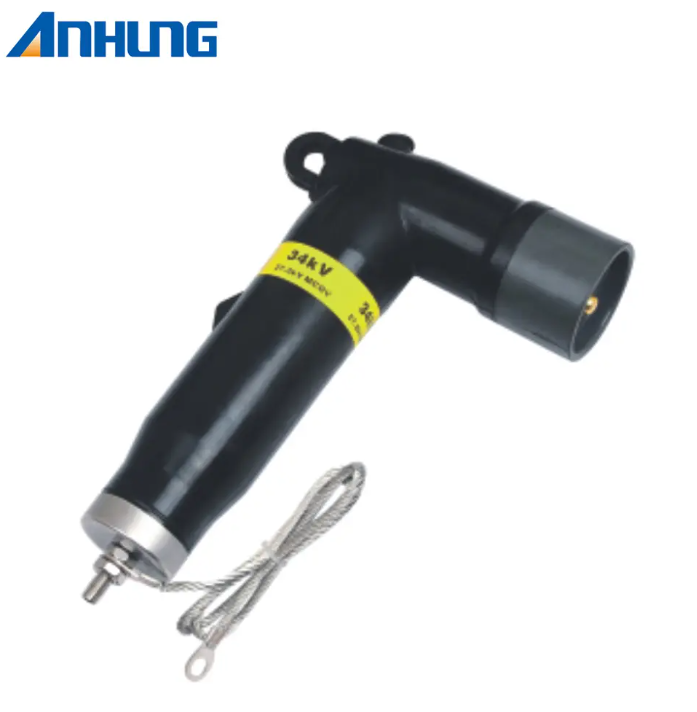

5. 34kV Surge Arrester Insert: Extending Capabilities

For networks requiring higher voltage protection, Anhuang’s 34kV Surge Arrester Insert offers an extended protection range. This insert is commonly used in medium voltage applications with equipment such as transformers, switchgear, and cables. It provides an additional layer of protection for networks operating closer to the 34kV threshold, where voltage surges could otherwise lead to more severe system failures.

The 34kV insert is compatible with various loadbreak elbows and offers the same high-quality insulation and surge protection as the 24kV model, making it a versatile option for protecting assets in both 24kV and 34kV systems.

6. Benefits of Using a Loadbreak Elbow Surge Arrester

Using a loadbreak elbow surge arrester offers multiple benefits for medium voltage systems:

• Enhanced Equipment Longevity: By preventing voltage spikes from reaching sensitive components, the loadbreak elbow surge arrester extends the service life of transformers, switchgear, and cables.
• Operational Safety: Protects personnel by containing voltage surges within insulated equipment, reducing the risk of arc flashes and equipment failures.
• Reduced Downtime and Maintenance Costs: Mitigating overvoltage damage lowers maintenance requirements and minimizes costly unplanned downtime.
• Efficient Power Management: Ensures stable operation even under load, allowing efficient management of power distribution.

7. Why Choose Anhuang’s Loadbreak Elbow Surge Arresters?

Anhuang is known for producing high-quality surge arresters, including the 24kV and 34kV loadbreak elbow surge arresters. With a focus on meeting IEEE386 and IEC standards, Anhuang ensures that each product is crafted to deliver optimal protection and performance. Here’s why their products stand out:

• Quality Materials: Anhuang’s surge arresters are made with durable materials like silicone rubber, known for its exceptional insulation properties.
• Advanced Engineering: The loadbreak elbow surge arresters are designed with high-performance materials and technology to meet medium voltage network demands.
• Reliability: By adhering to strict standards, Anhuang’s loadbreak elbows provide dependable surge protection, reducing maintenance needs and protecting equipment from sudden voltage spikes.

Anhuang’s products are developed with attention to detail and quality, making them a reliable choice for utility companies, industrial operators, and power distribution systems worldwide.

Conclusion

The 24kV Loadbreak Elbow Surge Arrester from Anhuang is an indispensable tool for protecting medium voltage networks against harmful voltage surges. With compliance to IEEE386 and IEC standards, this product ensures robust performance, safety, and durability. The optional 34kV Surge Arrester Insert extends this protection further, making it suitable for a range of applications.

By investing in high-quality loadbreak elbow surge arresters, utility companies and industrial operators can safeguard critical infrastructure, minimize maintenance needs, and improve overall network resilience. For organizations looking for reliable, standards-compliant medium voltage protection, Anhuang’s loadbreak elbow surge arresters are a valuable addition to any power distribution system.
