Date：01-17-2025

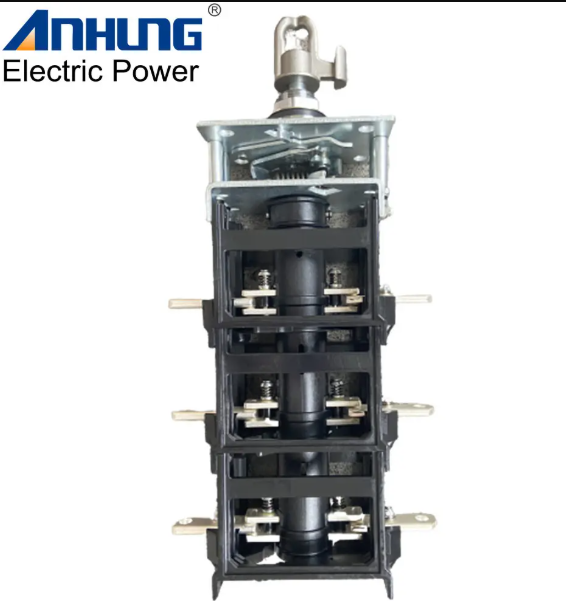

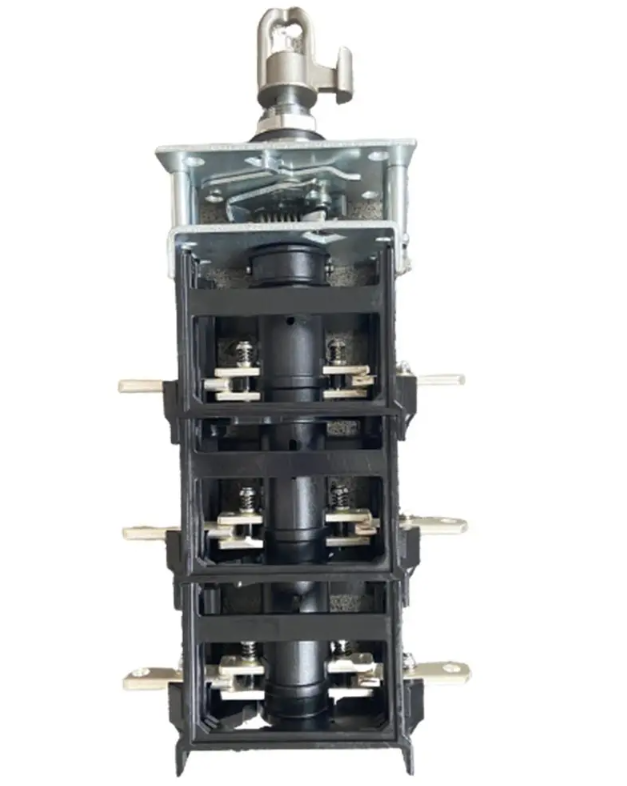

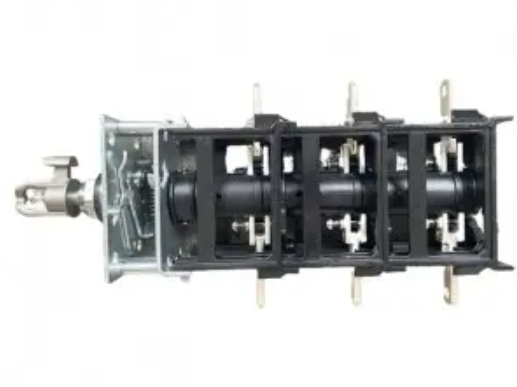

Distribution networks make up the heart of modern infrastructure, and their reliability affects industries, businesses and homes. This Two Position Oil Immersed Loadbreak Switch,oil immersed load break switch is an ingenious product that combines modern design and rugged operation. This switch is made for power grids with the highest levels of safety, efficiency, and durability, from combined transformers to large-scale distribution networks.
1.Insulation and Arc Extinction Fluid: Transformer Oil, etc.
This load break switch uses transformer oil, which is a trademark feature. This premium oil has two purposes:
Insulation: Transformer oil safely isolates the electrical circuits so the system doesn’t short out.
Arc Extinction: Arcs are all around while load switching. Transformer oil absorbs and kills these arcs, saving switch parts time and money.
Thanks to this dual function, the switch will function reliably and safely even when overloaded and can thus be trusted in challenging applications.
2.Energy-Storing Spring Operating Mechanism
The spring, which stores energy, is the other major appeal of this switch. It makes things run smoothly and effectively by:
Mechanical energy storage is used during the activation of the switch.
Letting off the energy slowly to complete the ON/OFF switch.
This device eases the operator’s workload and allows them to switch seamlessly between the two axes.
3.Two-Position Design: ON and OFF
The design philosophy behind this switch is simple. Since the switch has only two buttons – ON and OFF – it removes complexity from operation:
Rotation in a clockwise direction turns the switch ON.
Anticlockwise rotation turns it OFF.
The rotational angle is limited to 90?, allowing for precision and avoiding over-rotation, which can destroy the internal parts.
This is a simple design that makes it easy for operators with no special skills to use.
4.Compatibility with Various Power Systems
This load break switch is extremely multifunctional and scalable to power distribution configurations:
End Power Distribution Systems: It allows effective switching for terminal end power distribution systems.
Ring-Network Power Distribution Systems: When bundled with other configurations, it is fully integrated with ring-network solutions, making it reliable and downtime efficient.
Whether for home and small office use or large-scale networks, this switch is the perfect partner for almost any use.
1. Unmatched Reliability
Any power distribution part must have reliability, and this switch has it abundantly. Its strong build quality and high-tech engineering make it do a stellar job when the load is heavy and the weather is harsh. It will automatically accept load currents without interruption, giving engineers and users uninterrupted power.
2. Safety First
This transformer oil-based arc-extinction compound helps to protect the switch. It also effectively shields against electrical arcs that are common in the switching process. This 90? rotation restriction is also used to keep the operation safe from over-rotation.
3. Long-Lasting Durability
Everything about this switch is made tough. From the quality materials it is constructed from to the longevity of transformer oil, all of its parts are built to last. This means less need for maintenance and lower total cost of ownership during the product’s life.
4. Ease of Operation
The switch is very simple to operate, with two positions and a heat-accumulating spring. With very little training, operators can complete switch jobs quickly and accurately, making it an ideal power distribution system worldwide.
5. Versatile Applications
Whether it’s in combined transformers, end distribution, or ring-network arrangements, the switch will work within different power configurations. This all-purpose capability is why engineers and system architects choose it to get the most out of their power distribution networks.
A Brief History
ANHUANG is a design and production leader of medium voltage solutions, established in 2004. The company began as a manufacturer of high-voltage fuses but soon had:
Lightning arresters
Cable connectors
Medium voltage cable accessories
Complete electric cabinets
Years of quality and innovation have made ANHUANG the leading supplier of electrical parts in both domestic and foreign markets.
Professional Technical Team
Molds are designed and made by ANHUANG’s internal experts, which allows ANHUANG to provide OEM and ODM services as per customer requirements.
Quality Control
Multiple quality inspections during each step of the manufacturing process ensure that every product is at the highest level of reliability and safety.
Global Reach
ANHUANG is a major medium voltage player in China with a presence in Italy, the USA and Russia.
1. High-Quality Materials
Using only the finest materials, ANHUANG’s products are strong and reliable in the most extreme environments.
2. Advanced Manufacturing Techniques
ANHUANG has an in-house mold design and manufacturing facility to manufacture the products exactly to your needs.
3. Customer-Centric Approach
You can buy standard components or custom solutions because ANHUANG’s focus on the customer ensures that you always get the right product for the job.
4. Competitive Pricing
Although ANHUANG is all about quality, its products are reasonably priced, so everyone can afford them.
5. Excellent After-Sales Support
ANHUANG support, from installation instructions to troubleshooting advice, will always be there for you, making your customer journey hassle-free.
This switch is perfect for many uses, such as:
Industrial Power Systems: Delivers stable power supply to factories and industrial buildings.
Utility Networks: These are used in the end and ring-network power distribution networks.
Solar and Wind Renewables: For installations with solar and wind power that require efficient switching.
Commercial Complexes: Offers reliable power management for malls, office buildings and other large buildings.
Have the power distribution system that you need to get upgraded? See more 25kV 630A Two-Position Oil Immersed Loadbreak Switch and more high-end products at ANHUANG’s website:
25kV 630A Oil Immersed Loadbreak Switch Product Page.
This includes specs, installation guides, and customer support articles to give you the information.
This 25kV 630A Two-Position oil-immersed load break Switch is more than a switch; it’s a dedication to safety, security and power distribution. Whether you’re operating an industrial plant, a utility system or a shopping mall, this switch has the features and performance you need to succeed.
