Date：03-30-2022

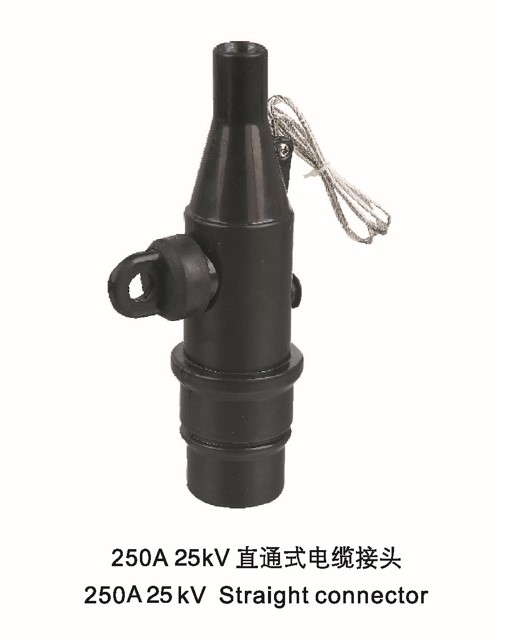

Features:
Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug.
Built-in capacitive test point to determine the circuit status or install a fault indicator.
No minimum phase clearance requirements.
Mounting can be vertical, horizontal, or any angle in between.
Application:
1. For connection of polymeric cable to transformers, switchgear, motors and other equipment with a pre-moulded separable connector.
2. For indoor and outdoor installations.
3. System voltage up to 24 kV.
4. Continuous current 250 A (300 A overload for 8 hours).
5. Cable particulars:
- Polymeric cable (XLPE, EPR, etc.)
-Copper or aluminum conductors
- Semiconducting or metallic screens
-Conductor size 25~120 mm2
Standards:
Meet the requirements of GB/T 12706.4-2002 and IEC 60502.4-2005.

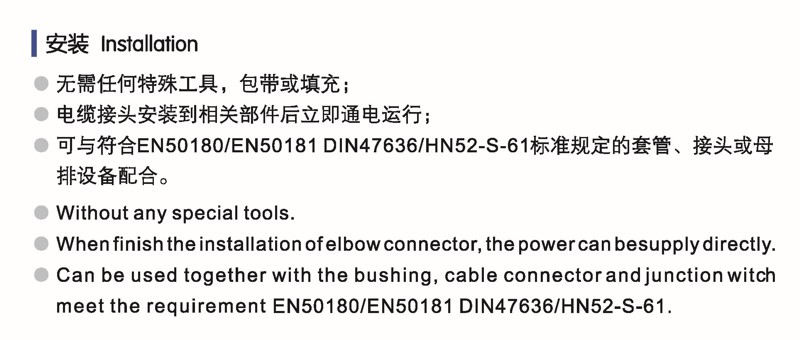

Kit contents:
Straight connector
Copper or Aluminum conductor cable lug
Steel installation tool
Clearing paper
Silicone lubricant
Installation instruction sheet
Quality certificate
Order Information:
| Description | Reference No. | Conductor Crosssection (mm²) | Stretch Range Overinsulation (mm) |
| 15kV 250A Load break Straight Connector | AH ZTS-15/250-25 | 25 | 16.3-19.9 |
| 15kV 250A Load break Straight Connector | AH ZTS-15/250-35 | 35 | 16.3-19.9 |
| 15kV 250A Load break Straight Connector | AH ZTS-15/250-50 | 50 | 16.3-19.9 |
| 15kV 250A Load break Straight Connector | AH ZTS-15/250-70 | 70 | 19.8-23.5 |
| 15kV 250A Load break Straight Connector | AH ZTS-15/250-95 | 95 | 23.1-27.1 |
| 15kV 250A Load break Straight Connector | AH ZTS-15/250-120 | 120 | 23.1-27 .1 |
| 25kV 250A Load break Straight Connector | AH ZTS-25/250-35 | 35 | 23.1-27 .1 |
| 25kV 250A Load break Straight Connector | AH ZTS-25/250-50 | 50 | 23.1-27.1 |
| 25kV 250A Load break Straight Connector | AH ZTS-25/250-70 | 70 | 23.6-26.4 |
| 25kV 250A Load break Straight Connector | AH ZTS-25/250-95 | 95 | 23.6-26.4 |
| 25kV 250A Load break Straight Connector | AH ZTS-25/250-120 | 120 | 27.9-33.5 |

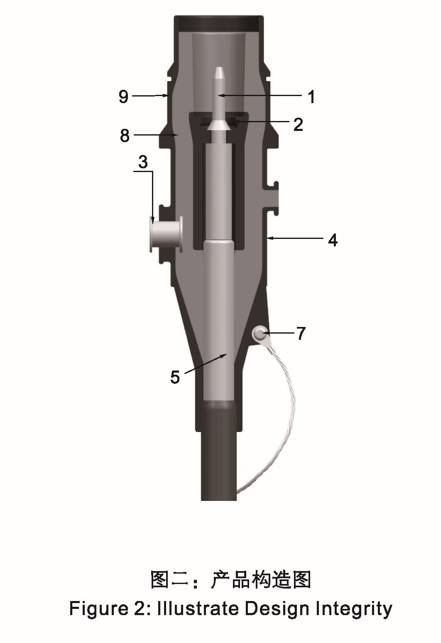

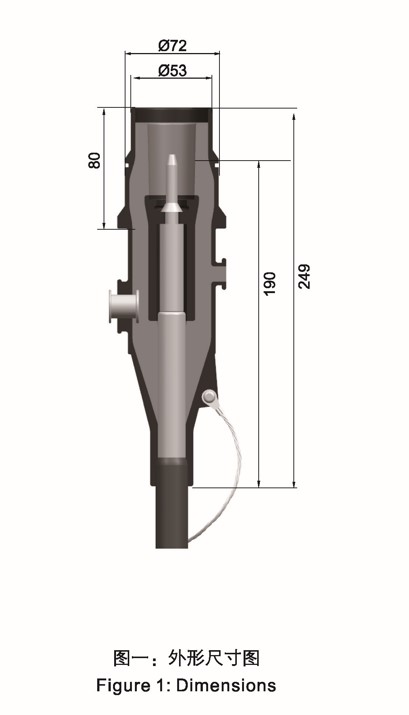

Product Structure:
1,Conducting Rod: pin type crimp connector can be copper or bimatel.
2,SEMI-CONDUCTIVE INSERT: Molded EPDM conducting rubber shielded controls electrical stress.
3,Capacitive Test Point: Capacitive test point provides a means to check circuit status. A molded EPDM conducting rubber cap earths the test point when not in use.
4,Stress Relief: The configuration of the outer screen and insulation provide cable stress relief.
5,Cable Entrance: The sized opening provides an interference fit to maintain a watertight scale.
6,SEMI-CONDUCTIVE SHIELD: Molded EPDM conducting rubber mates with
the cable screen to maintain screen continuity and ensure that the assembly is at earth potential.
7,Grounding Eye: Molded into the external screen for connection of an earthing wire.
8,Insulation: Molded EPDM insulating rubber is formulated and mixed in-house to ensure high quality.
9,Locking Ring Groove: Provision for an optional three-phase locking ring.
