Deadbreak T Rear Arrester

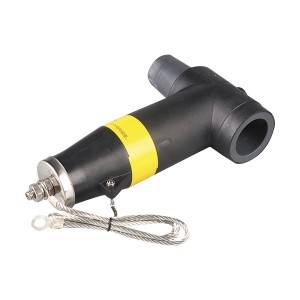

AHBLQ-17/50 Deadbreak T Rear Arrester

Product introduction:

AHBLQ-17/50 Deadbreak T Rear Arrester can provide reliable overvoltage protection for the electrical system. The shielding type followed by the outer semi-conductive layer of the arrester ensures the personal safety of the installation and maintenance personnel and the safe operation of the equipment. At the same time, its anti-ultraviolet, anti-aging, waterproof and moisture-proof characteristics ensure the safety and reliability of the product in harsh environments run.

The European-style rear-connected lightning arrester cooperates with the European-style front connector to ensure the safe operation of the power grid.

product structure:

1. Insulation layer: The special formula and mixing technology ensure the high quality of prefabricated EPDM insulating rubber.
2. Outer semi-conductive layer: the prefabricated EPDM conductive rubber meets the IEEE592 standard.
3. Surge arrester core: It is composed of zinc oxide arrester valve discs that have undergone special process treatment.
4. Copper bottom cover: The copper bottom cover is tightly integrated with the outer conductive layer of the arrester to effectively waterproof the arrester and provide a grounding point for the arrester.
5. Grounding wire: The grounding wire that comes with the lower end of the arrester is used to effectively connect the lightning impulse voltage to the grounding position.
6. Inner semi-conductive layer: prefabricated EPDM conductive rubber can effectively control electrical stress.
7. Double-headed bolts: Tinned copper bolts ensure that the conductor and the casing are closely matched.
8. Insulator end cover: make the product have the function of insulation and sealing.

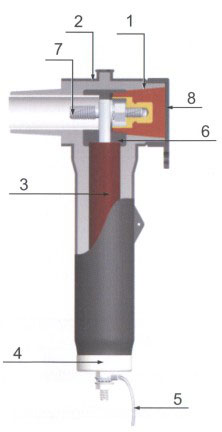

Structure diagram:

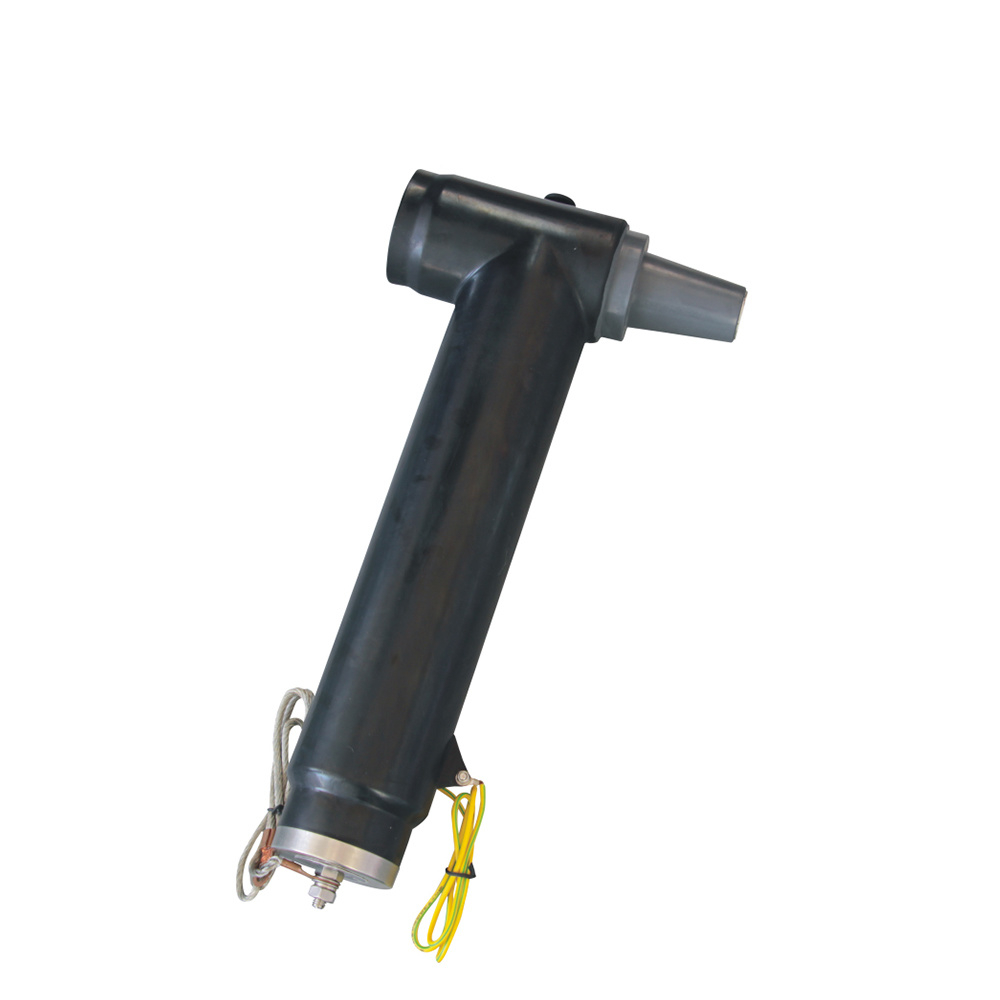

35/78 Deadbreak T Rear Arrester

Product introduction:

35/78 Deadbreak T Rear Arrester  can provide reliable overvoltage protection for the electrical system. The shielding type followed by the outer semi-conductive layer of the arrester ensures the personal safety of the installation and maintenance personnel and the safe operation of the equipment. At the same time, its anti-ultraviolet, anti-aging, waterproof and moisture-proof characteristics ensure the safety and reliability of the product in harsh environments run.

The European-style rear-connected lightning arrester cooperates with the European-style front connector to ensure the safe operation of the power grid.

product structure:

1. Insulation layer: unique formula and mixing technology to ensure the high quality of prefabricated EPDM insulating rubber;
2. Outer semi-conductive layer: prefabricated EPDM conductive rubber meets the IEEE592 standard;
3. Surge arrester core: it is composed of zinc oxide arrester valve plate treated by special process;
4. Copper bottom cover: The copper bottom cover is tightly integrated with the outer conductive layer of the arrester to effectively waterproof the arrester and provide a grounding point for the arrester;
5. Grounding wire: The grounding wire that comes with the lower end of the arrester is used to effectively connect the lightning impulse voltage to the grounding position.

Structure diagram:

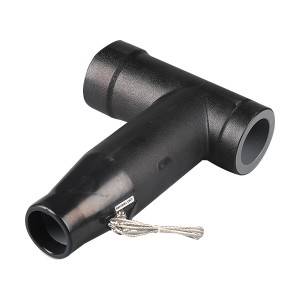

AHJ12/24-630A Deadbreak T Rear Connector

Product introduction:

AHJ12/24-630A Deadbreak T Rear Connector can be connected to the European style front connector or another rear connector to provide an extended cable connection loop (branch). It cannot be directly connected to the bushing base or the wall bushing. Its tail can be directly blocked with an insulating plug, or it can be extended to connect another European-style rear connector or a surge arrester.

performance:

When matched with a suitable sleeve or plug, a fully shielded and fully sealed separable connection is provided;
Can operate under water and other harsh conditions for a long time;
The built-in capacitance test point is used to determine the live state of the line or install a live indicator;
No minimum safety distance requirement between phases;
The installation can be vertical, horizontal or any angle.
