Improve the Safety and Durability: Ahtg3-40.5kv Epoxy Resin Wall Bushing

Date:03-27-2025

In the electrical engineering domain, performance-critical insulation components guarantee safety and efficiency. One of these components is the Ahtg3-40.5kV 260X260X395 Epoxy Resin Wall Bushing which provides high voltage insulation with effective connectivity across industrial applications. This epoxy resin bushing is vital in ensuring electrical containment and averting power interruptions in systems designed for power transmission and distribution.

This piece seeks to elaborate on the specifications, benefits, uses, and reasons the Ahtg3-40.5kV 260X260X395 Epoxy Resin Wall Bushing is opted for easily and how these make the product stand out in the market does offer high-performance insulation products.

What is Epoxy Resin Wall Bushing?

Epoxy Resin Wall Bushing is a type of insulating device in electrical systems specifically allowing the passage of electrical conductors through walls or enclosures without short circuits or leakage. These bushings are made from epoxy resin which provide them with mechanical strength, environmental endurance, and electrical insulation.

Global renown of epoxy resin as an epoxy getter is an astonishing accomplishment. It’s corrosion resistant, possesses high dielectric strength, and unrivaled mechanical stability. It also has low moisture absorption rate. When cured with suitable hardeners, an industry epoxy getter has polymerized into a strong, heat-resistant, reliable plastic which assures longevity and dependability with electrical components.

fgherc1

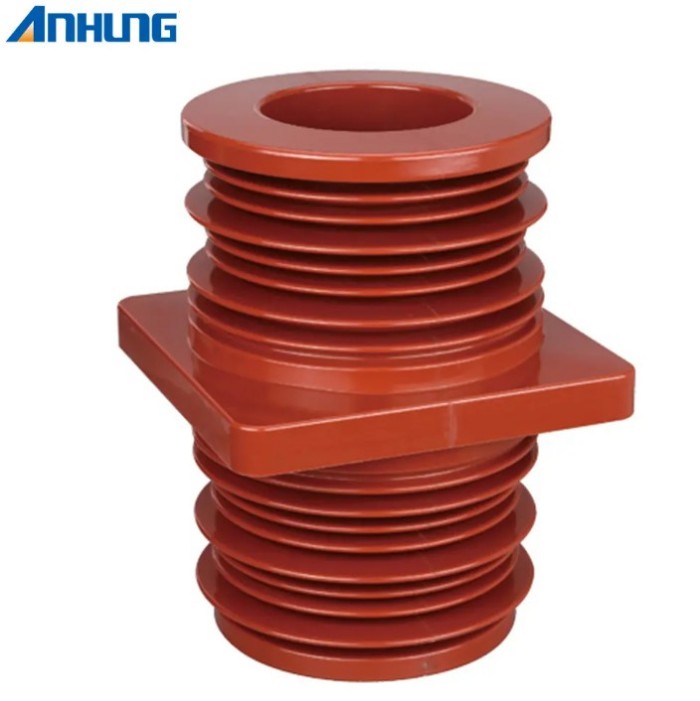

Key Features of the Ahtg3-40.5kV 260X260X395 Epoxy Resin Wall Bushing

High Voltage Insulation Robustness

Built for advanced applications such as high voltage electric withstanding voltages up to 38kV while also boasting improved dielectric strength and guaranteeing reduced probability of electrical faults bunged systems.

Robust Epoxy Resin Structure

The automation of phosphor bronze glaze APG process pressure gel molding assures constant process characteristics through all the controlled cavities of the constituent tooling bushings. The use of a pressure gelling process ensures additional strength and stability of the structural elements. Clients expect precision in the product`s dimensions, granting the surface polish smooth and respectable. Therefore, it leads to conformed and reliable processes.

Compact and Durable Design

Its external frame is 260X260X395 mm with a cylindrical structure base made out of high-strength polymer granite inset screw ports. This makes this bushing ideal for all economical and power-dense electricity of suspended auxiliary fans for cooling electronic devices. Its strong mechanical properties guarantee resistance to mechanical stress and thermal expansion. Thus, it is favorable in hostile operating environments.

Moisture and Dirt Resistive Features

This bushing is created for locations that have a humidity of over 85% at 20ºC. It caps the entry of dust and dirt, which helps to preserve its insulating features on some more. This function is very important in industrial and power transmission environments where interference in the surroundings can pose a challenge to electrical performance.

Reliable Performance Even in Harsh Environments

Operational temperature range is from – 5ºC to + 40ºC. It allows installations up to the altitude of 1000 meters and is not loaded with explosive gases or any other corrosive agents that would eat away the insulating material. This variability makes it appealing to a broad scope of industries.

Benefits of Using Epoxy Resin Wall Bushing

Improved Safety Measures from Outages

Its insulation is so good that it prevents short circuits and electrical failures. With the help of maintaining high dielectric strength, the Ahtg3-40.5kV epoxy resin wall bushing provides reliable power supply and equipment protection against electric surge power outage.

Extended Service Life and Serve Longer With Less Cost

Compared with ceramic or porcelain bushings, epoxy resin bushings are the most resistant to cracking or mechanical failure. With never-ending service life, vandalism on maintenance makes them a great choice, making them an affordable option for long-term electrical systems.

Lightweight and Easy to Install. So, plastic is lighter than other insulation materials meaning reduced effort and time energy. The compact structure facilitates ease of use and includes integration within the existing electrical systems setup. This feature works to advantage in large installations where a lot of bushings are required.

High Mechanical Strength. This construction can withstand mechanical strength, thermal stress, and environmental conditions. With plastic, its construction is robust, ensuring that there is stability and reliability and that it meets the requirements of harsh industrial conditions. Therefore, electrical engineers and technicians prefer this material.

fgherc2

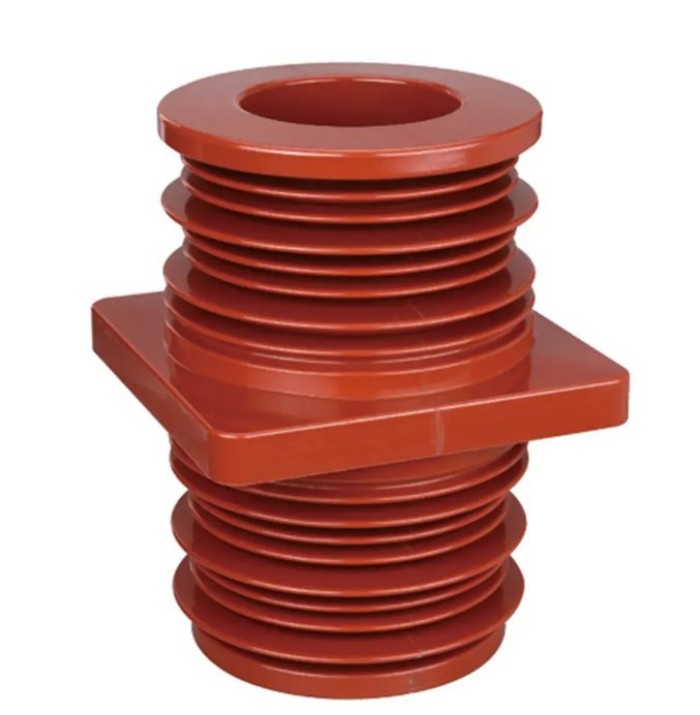

Uses of Ahtg3-40.5kV Epoxy Resin Wall Bushing

Power Distribution And Transmission Equipment

Integrated in power transformers, switch gear, and substations for transmission of power safely and effectively. These systems always work under high voltage. Therefore, high voltage insulation must be provided in order to avoid electrical faults and ensure power transmission is never interrupted.

Industrial Control Panels

Gives structural and electrical insulation support for industrial control panels and motor control centers. These panels tend to be highly loaded, which makes the presence of a reliable bushing a necessity for utmost safety and performance efficiency.

Renewable Energy Sources

Important in the integration of wind and solar power where the stability of energy flow is crucial. As more and more renewable energy is being harnessed, high quality insulating materials are vital not only to increase the systems efficiency but also to enhance safety.

Railway Electrification And General Infrastructure

Important in high-voltage powered electrification systems of railways and metros. With the Ahtg3-40.5kV epoxy resin bushing, reliable insulation in these transportation systems is achieved, lowering the risks of electrical failures in the transportation systems.

HVAC Systems And Electrical Devices

Applicable in industrial electrical equipment such as high voltage air conditioning (HVAC) unit where insulation is needed. In these applications, proper insulation will improve overall efficiency by reducing energy wastage.

How to Care for an Epoxy Resin Bushing

Regular Cleaning

Dust and dirt should be removed regularly to maintain bushing insulation. Having a clean bushing guarantees the best electrical insulation and prevents problems due to dust build-up.

Inspection for Damage

Look for signs of wear, cracks, or burns and replace them if needed. Preset inspection allow to identify problems at an early stage and minimizes the chances of unforeseen failures.

Proper Installation

Make sure the bushing is fastened properly to avoid misalignment and mechanical stress. Proper installation is essential in preserving insulation and ensuring performance.

Why is the wall bushing AHTG3-40.5kV 260X260X395 AHTG3-40.5kV 260X260X395 Epoxy Resin Bushing of Your Choice?

Manufacturing Processes You Can Trust

Using high APG pressure gel molding increases efficiency, quality, and uniformity at the same time. These qualities improve the reliability and durability of the bushing in numerous applications.

Optimized for High Voltage Applications

For demanding industrial applications, this wall residual bushing ensures constant insulation reliability and reduction of electrical flaws, improving the efficiency of the system.

Affordable and Dependable

Investment-friendly option due to the long service life combined with low maintenance needs. Operational costs over time are considerably lower due to the durability and reliability of the Ahtg3-40.5kV epoxy resin bushing.

Excellent Customer Support

Comprehensive assistance with selection, installation, and maintenance is available to customers due to the trustworthy manufacturer that offers dependable technical support and guidance.

Conclusion

The Ahtg3-40.5kV 260X260X395 Epoxy Resin Wall Bushing is robustly constructed from epoxy resin which boasts exceptional insulation properties and resistance to environmental factors. This alongside the electrical solutions’ preferred choice for long-lasting and high performance makes safety, reliability, and efficiency assurance in various applications the reason why it is considered essential for high voltage insulation.

This epoxy resin bushing achieves outstanding performance whether it is for power distribution systems, renewable energy installations, or industrial panels. Withstanding high temperatures without compromising on safety and efficiency allows this epoxy bushing to upgrade a systems electrical base.

For more details, visit the official product page: Ahtg3-40.5kV Epoxy Resin Wall Bushing
