Date：12-16-2021

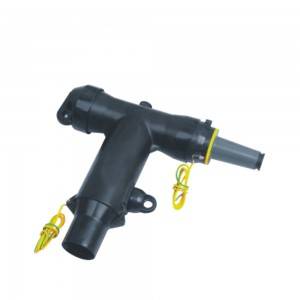

600A Deadbreak Tee Tap Connector
Product description:
The combined product of American 600A T-connector and load conversion head is called 600A Deadbreak Tee Tap Connector for short. The product is used for Loadbreak cable branch box, Loadbreak box substation, RMU inlet and outlet.
The 600A end is connected with the 600A bushing and the 600A busbar, and the load conversion head is connected with the 200A elbow connector and the 200A elbow arrester. The applicable cross section is 25-500mm2.
Product Structure:

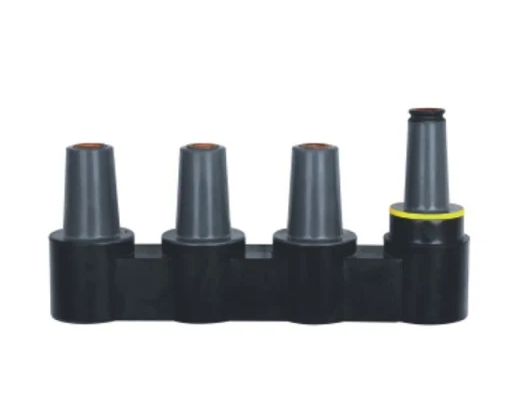

200/ 600 Busbar Junctions
Product description:
It is connected with T-type cable joint T-Ⅱ cable joint or elbow-type cable joint, and the configuration is flexible and diverse. Various 200A and 600A hybrid busbars can be customized according to customer requirements

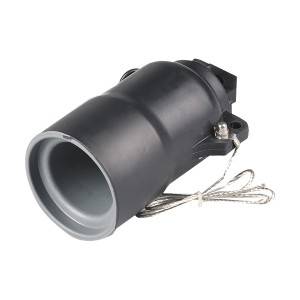

Product description:
JYM-15/600A Insulation cap are mainly used to provide insulation protection (permanent or temporary) for live 600A bushings, busbars or other equipment, and provide dust and moisture-proof effects on uncharged bushings and busbars.
JYM-15/600A Insulation cap can be installed on accessories such as bushings, busbars and wall mounts. When the busbars and cable joints are reserved for spare outlets, they must be sealed with 600A insulating caps.

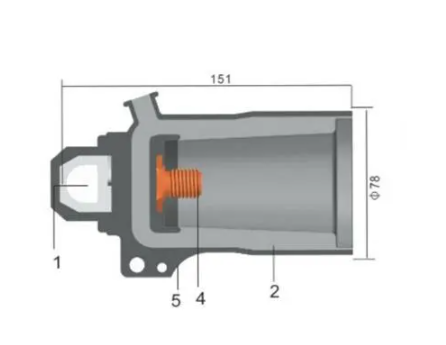

Product Structure:
