Low Voltage Porcelain Bushings in DIN standard

Date:02-24-2023

Low Voltage Porcelain Bushings in DIN standard

A tried-and-tested low-voltage bushing for distribution transformers applications may be a rod of conducting material inserted into a porcelain tube. This has a central current-carrying bolt, usually of copper, and the insulation is provided by a combination of the porcelain shell and the transformer oil.
Anhuang L.V. bushings is up to 3kV 4500Amp, which is available in several designs and can be customized according to customers’ requirements.

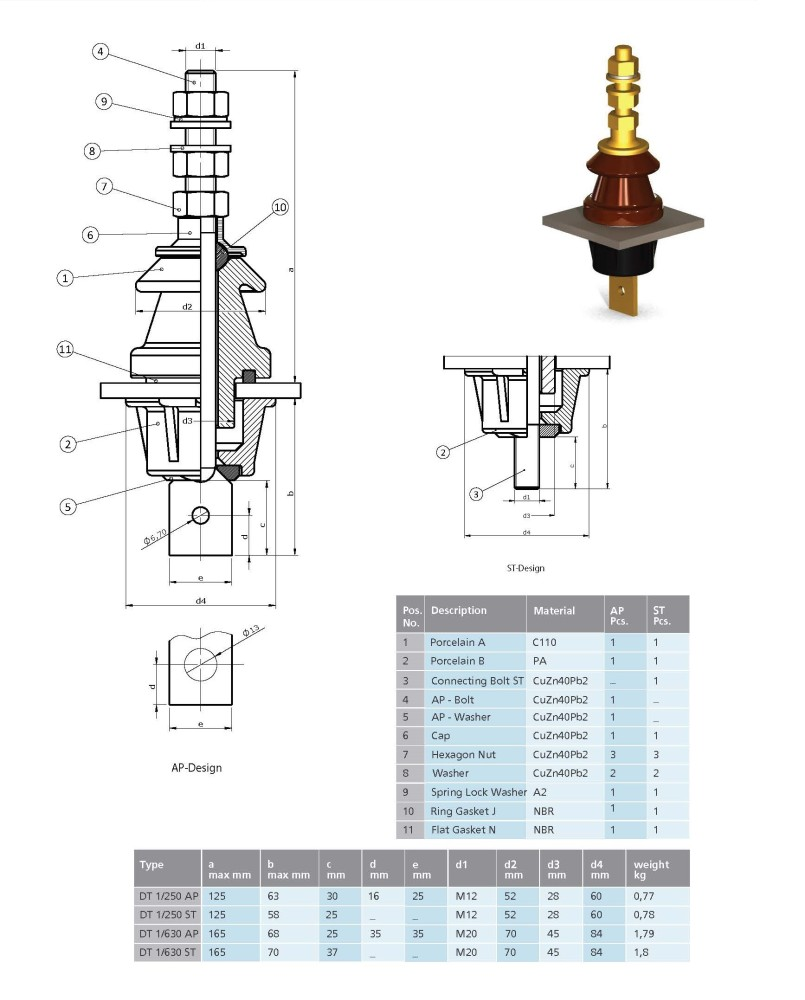

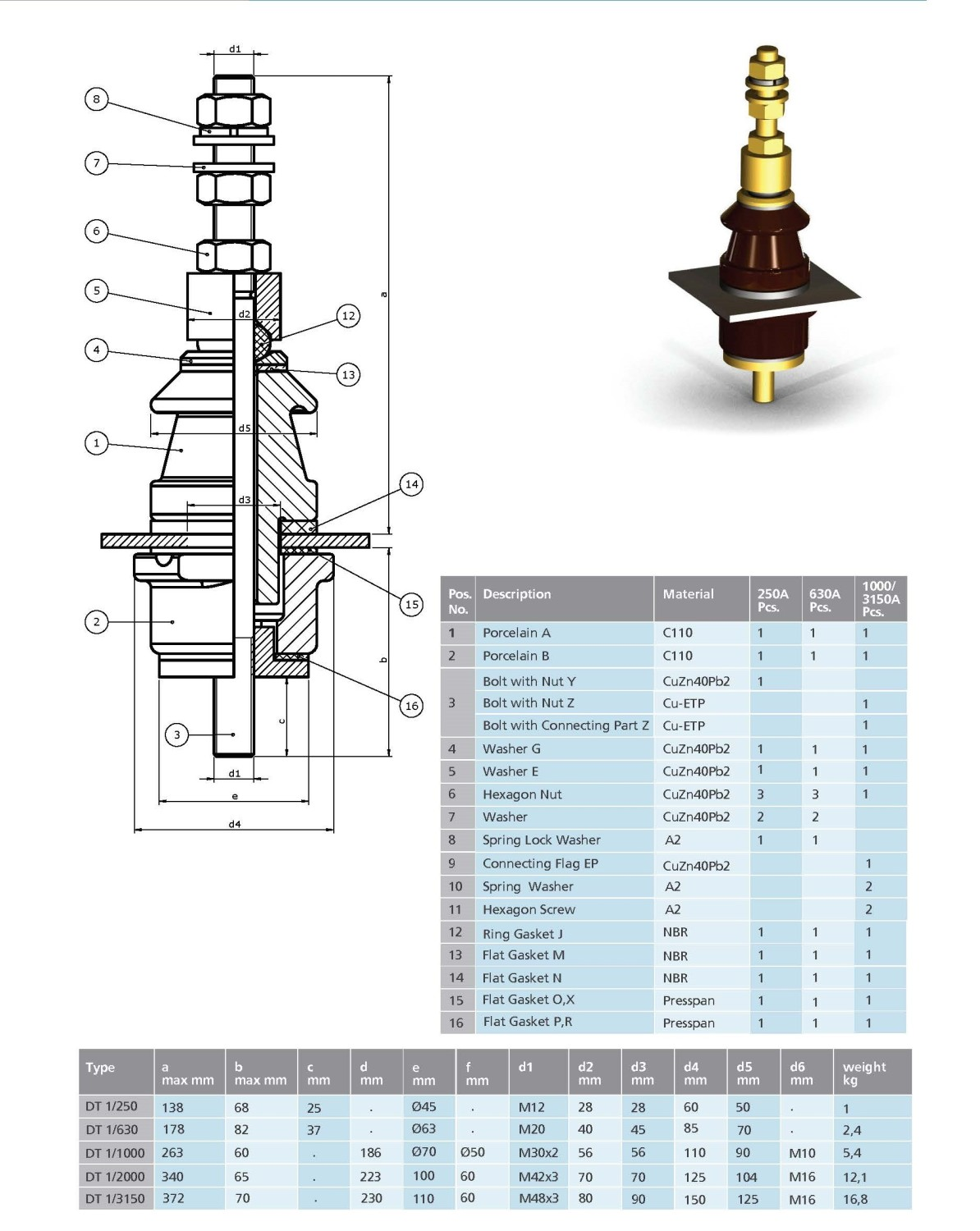

Low Voltage Porcelain Bushing 1kV  250-630Amp

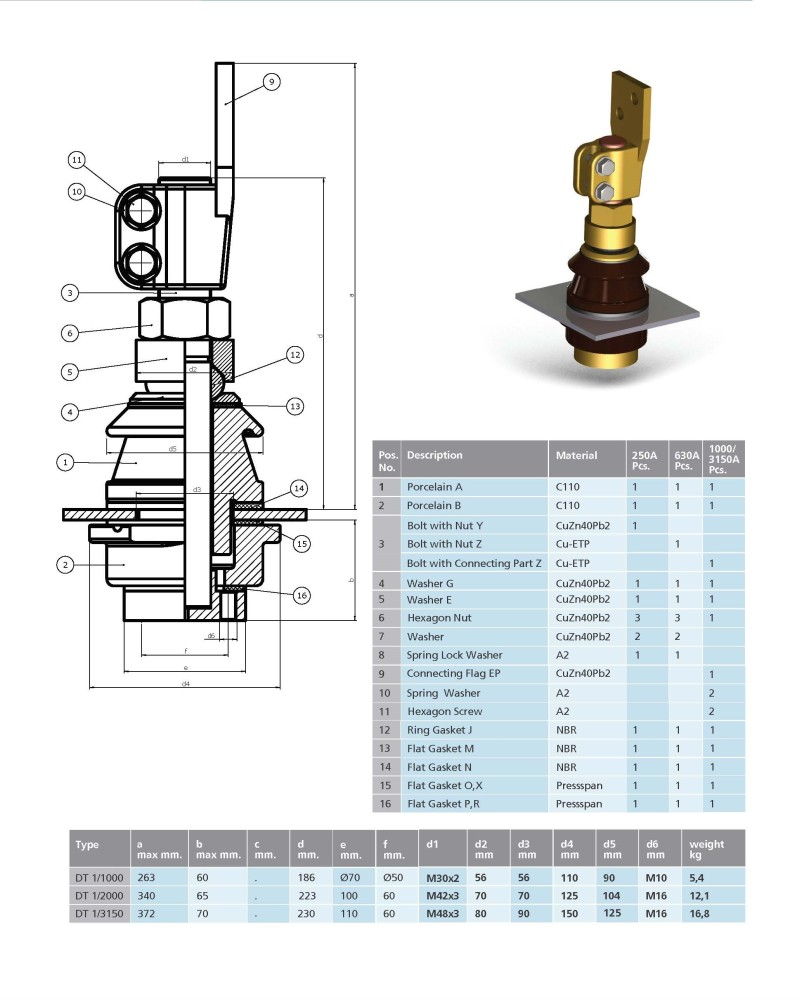

Low Voltage Porcelain Bushing 1kV  1000-3150Amp


Low Voltage Porcelain Bushing 1kV  630Amp

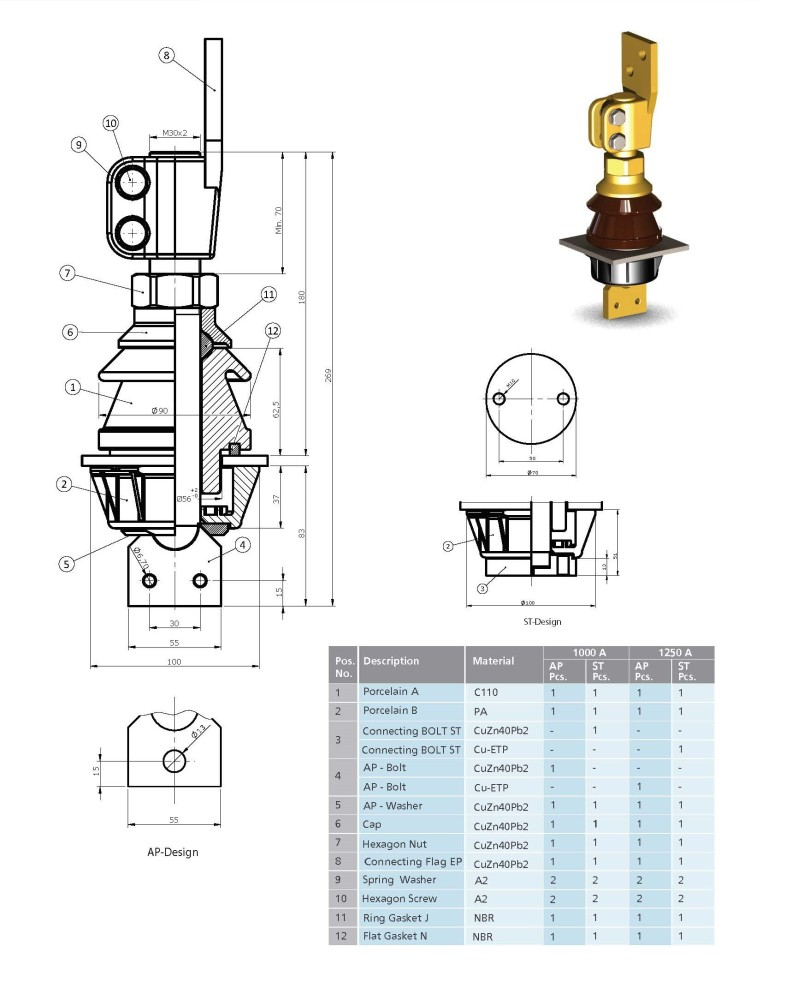

Low Voltage Porcelain Bushing 1kV  1250Amp


Low Voltage Porcelain Bushing 1kV  2000Amp

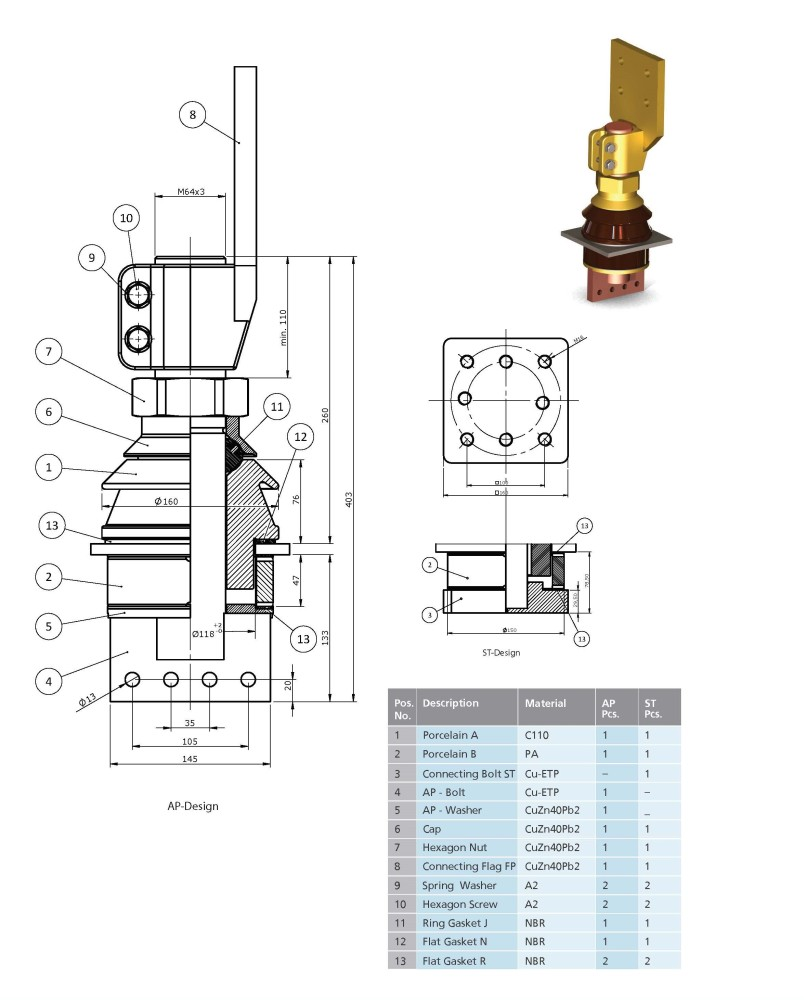

Low Voltage Porcelain Bushing 1kV  3150Amp


Low Voltage Porcelain Bushing 1kV  4000Amp


Low Voltage Porcelain Bushing 1kV  5000Amp

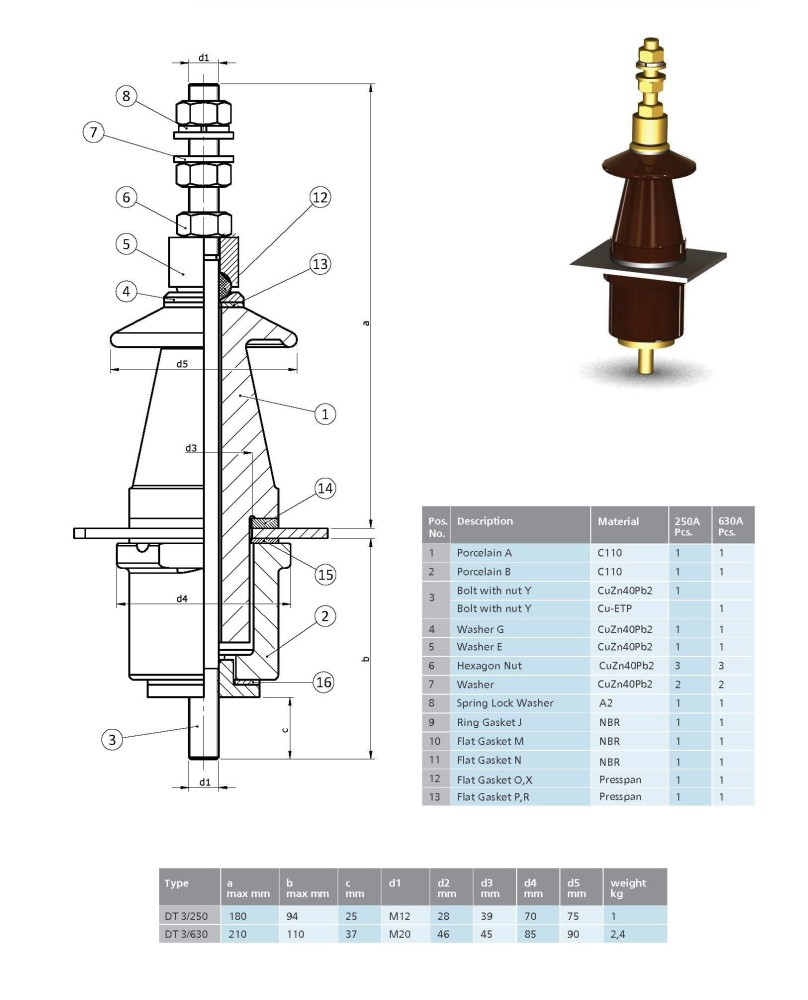

Low Voltage Porcelain Bushing 3kV 250-630Amp

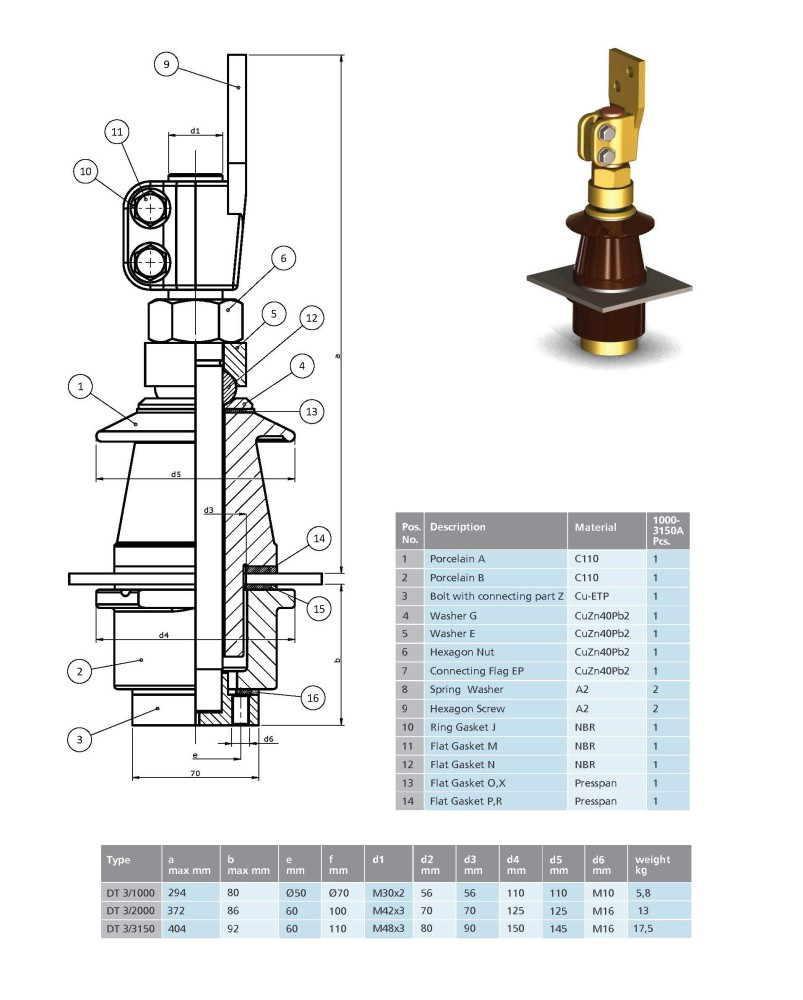

Low Voltage Porcelain Bushing  3kV  1000-3150Amp


Low Voltage Porcelain Bushing  3kV  4500Amp

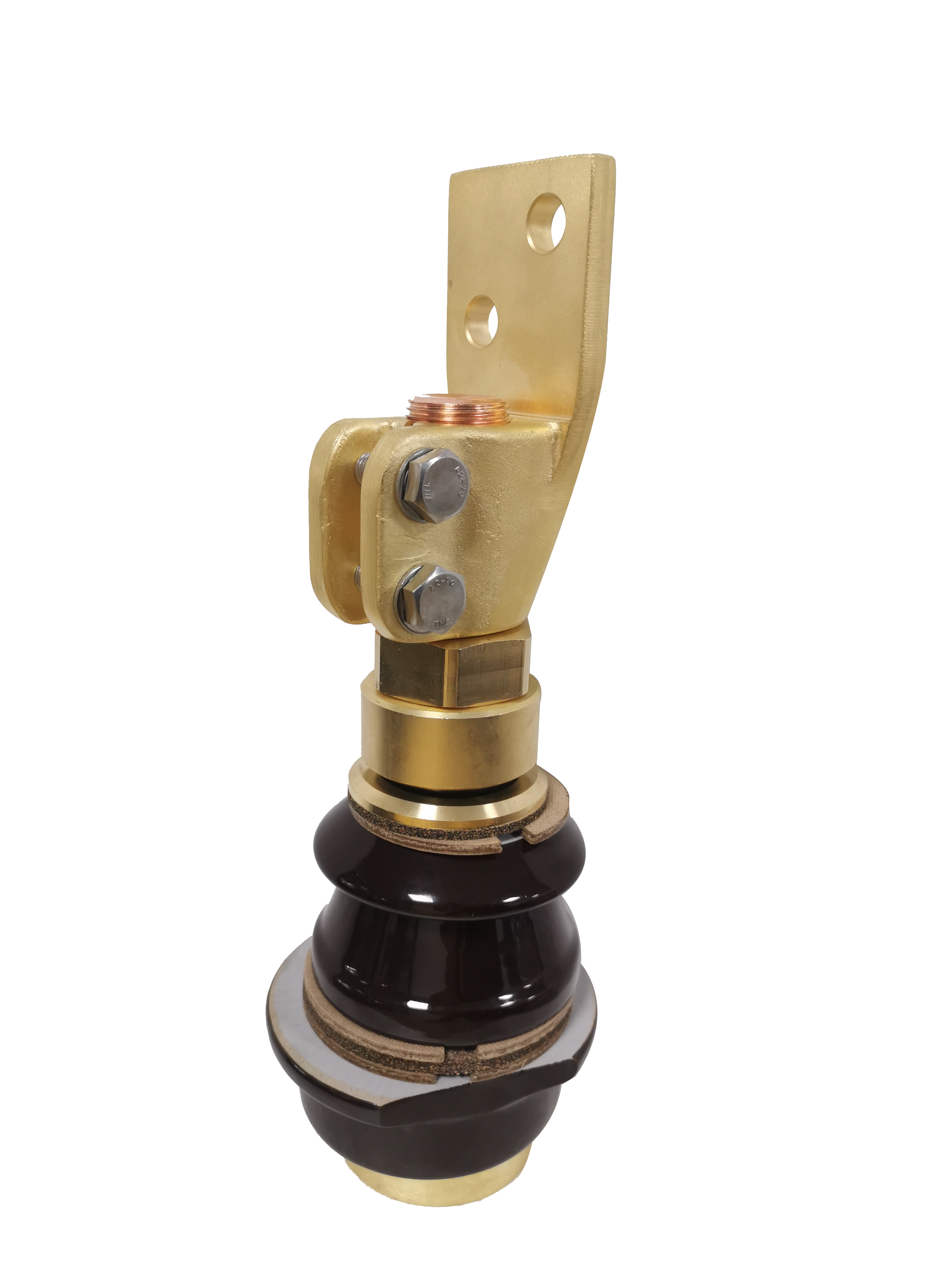

IMG_20221207_154132
