Date：11-26-2024
In the realm of electrical distribution systems, safety, efficiency, and ease of installation are paramount. A vital component that addresses these needs is the feedthru insert, particularly the 24kV 200A Rotatable Feedthru Insert. This innovative device simplifies the transition from radial-feed transformers to feed-thru transformers while ensuring robust in-line arrester protection. This article delves into the specifics of feedthru inserts, focusing on the features, benefits, and applications of the 24kV 200A Rotatable Feedthru Insert.
A feedthru insert is an electrical device designed to facilitate the connection of underground cables to distribution power systems, particularly in transformers. It allows for dual bushings from a single apparatus bushing well, enabling more efficient power distribution and enhancing system flexibility.
Feedthru inserts are essential in modern electrical infrastructure, particularly in urban environments where space is limited and operational efficiency is critical. By utilizing a feedthru insert, utility companies can effectively manage the flow of electricity while minimizing the risk of equipment damage and electrical failures.
The 24kV 200A Rotatable Feedthru Insert stands out as a crucial component in electrical distribution systems, designed to enhance both functionality and safety. Its innovative features not only simplify the conversion process for transformers but also provide robust protection against electrical surges. In this section, we will explore the key features that make the feedthru insert an indispensable tool for modern power distribution.

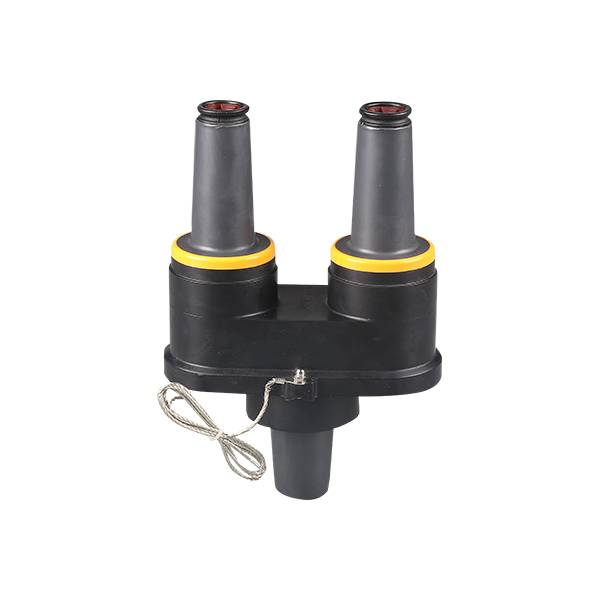

The 24kV 200A Rotatable Feedthru Insert is specifically designed to provide dual bushings from a single bushing well. This feature simplifies the conversion process for radial-feed transformers to feed-thru transformers, allowing for more versatile configurations in electrical distribution systems.
Transformers in the electrical distribution network are often designed for specific functions. The 24kV 200A Rotatable Feedthru Insert allows operators to easily convert existing radial-feed transformers into feed-thru transformers. This capability is particularly useful in scenarios where system requirements change, and flexibility is necessary.
The insert accommodates in-line arrester protection, providing an additional layer of safety for electrical equipment. This feature is crucial in protecting transformers and other distribution components from voltage surges and transient faults, ensuring long-term reliability and performance.
One of the standout features of the 24kV 200A Rotatable Feedthru Insert is its patented, built-in torque limiting ratchet. This mechanism prevents operators from inadvertently over-torquing the bushing well studs during installation, thereby reducing the risk of damage. This safety feature enhances the overall durability of the electrical system and improves installation efficiency.
The 200A Double-pass casing connector is another integral component of the 24kV 200A Rotatable Feedthru Insert. It facilitates the connection of underground cables to distribution power systems, including pad-mounted transformers and surrounding power supply branch boxes. This versatility makes the insert suitable for a wide range of applications.
The 24kV 200A Rotatable Feedthru Insert is designed to be used in conjunction with load break elbow connectors and surge arresters. These components are molded from high-quality, sulfur-cured insulating and semi-conducting EPDM rubber. When paired with comparably rated products, the insert provides a fully shielded and submersible load break apparatus connection, enhancing the system’s integrity and safety.
To simplify the installation process, the Double-pass casing connector includes a latch indicator ring located on the circumference of the bushing’s collar. This bright yellow ring eliminates guesswork during the installation of load break elbows on the bushing interface.
When the elbow is properly latched, the yellow ring is completely covered. If any part of the ring remains visible, it signals that the elbow can be adjusted for proper installation before any operational issues arise. This immediate feedback mechanism enhances user confidence during installation and ensures reliability in electrical connections.
The 24kV 200A Rotatable Feedthru Insert offers a multitude of benefits that enhance both the safety and efficiency of electrical distribution systems. Its innovative design and features provide users with flexibility, reduced installation time, and cost savings, making it an invaluable component for utility companies and electrical engineers. This section highlights the key advantages that the feedthru insert brings to modern power distribution networks.
The integration of in-line arrester protection and the patented torque limiting ratchet significantly increases the safety of electrical installations. By minimizing the risk of damage during installation and protecting equipment from surges, the 24kV 200A Rotatable Feedthru Insert enhances the overall safety of the electrical system.
With the ability to convert radial-feed transformers to feed-thru transformers, the feedthru insert offers operators the flexibility needed to adapt to changing system requirements. This adaptability is particularly valuable in dynamic environments where electrical loads and configurations can frequently change.
The design features, such as the latch indicator ring and the torque limiting mechanism, streamline the installation process. By minimizing guesswork and reducing the risk of installation errors, the 24kV 200A Rotatable Feedthru Insert helps to decrease installation time, allowing for faster system upgrades and maintenance.
By simplifying the conversion process and enhancing the durability of electrical connections, the feedthru insert contributes to long-term cost savings. The ability to utilize existing transformer setups without extensive modifications reduces the need for costly equipment replacements or upgrades.
The 24kV 200A Rotatable Feedthru Insert is used in various applications within the electrical distribution sector, including:
These transformers are commonly used in residential and commercial areas to provide localized power distribution. The feedthru insert facilitates the connection of underground cables, enhancing the efficiency and safety of these installations.
In situations where multiple power supply sources are required, the feedthru insert allows for effective connections to branch boxes, ensuring reliable power distribution across networks.
In urban settings, where space is often at a premium, the ability to convert existing transformer setups with a feedthru insert provides flexibility in managing power distribution efficiently.
As the integration of renewable energy sources into the grid becomes increasingly important, the 24kV 200A Rotatable Feedthru Insert plays a vital role in connecting various generation sources to the distribution network, enhancing the reliability of energy delivery.
The feedthru insert, particularly the 24kV 200A Rotatable Feedthru Insert, is an essential component in modern electrical distribution systems. Its innovative design features, including dual bushing capability, in-line arrester protection, and the patented torque limiting ratchet, make it a practical solution for enhancing safety and efficiency in electrical installations.
As power distribution networks evolve, the need for adaptable and reliable components becomes ever more critical. The 24kV 200A Rotatable Feedthru Insert not only meets these demands but also provides significant benefits in terms of safety, flexibility, and cost-effectiveness. For utility companies and electrical engineers looking to improve their systems, the feedthru insert is a smart investment in the future of power distribution.
