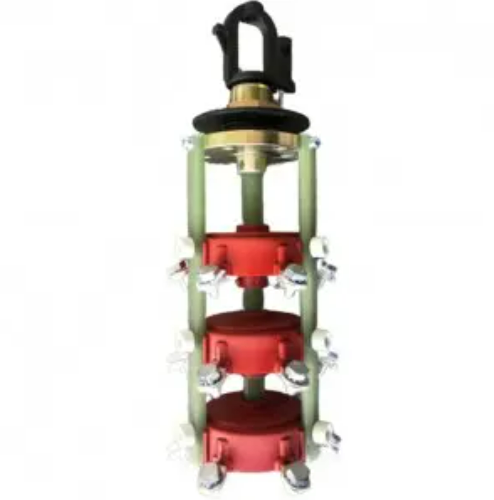

Tap Changer Oil Immersed Load Break Switch (WSLII3-125-10): An Informal Guide

When it comes to power distribution systems, you need reliable, efficient equipment. That’s where the Tap Changer Oil Immersed Load Break Switch (WSLII3-125-10) steps in. Whether you’re working with a combined transformer system or dealing with complex power networks, this load break switch is designed to make things easier.

But let’s break it down. If you’ve ever wondered what makes a loadbreak switch important, or how it works, you’re in the right place. This guide will walk you through everything, with no complicated jargon-just simple, straightforward info.

What Exactly Is a Load Break Switch?

In basic terms, a loadbreak switch is a crucial piece of electrical equipment that controls the flow of power in a distribution system. It allows you to safely switch electrical loads on or off without interrupting the power supply. It’s like having a super-powered light switch, but for electricity grids.

Now, the Tap Changer Oil Immersed Load Break Switch isn’t your everyday switch. This particular model uses transformer oil for insulation and to extinguish arcs (those little sparks of electricity that can cause damage if left unchecked). The oil acts as a medium to protect the internal components and prevent any harmful sparks when the switch is flipped.

How Does the WSLII3-125-10 Work?

The WSLII3-125-10 loadbreak switch works on a simple mechanism powered by an energy-storing spring. Think of it like winding up a toy-when you twist it, energy builds up and releases when needed, allowing the switch to turn on or off without a hitch.

This switch has two positions-ON and OFF. To switch it on, just turn it clockwise (righty-tighty!), and to turn it off, rotate it anticlockwise (lefty-loosey!). But be careful-the rotation needs to stay within a 90-degree angle, or you might cause some trouble.

What’s the Point of the Oil?

Using transformer oil inside the loadbreak switch has a lot of benefits. First, it acts as an insulator, which means it stops any electrical charge from going where it shouldn’t. But it also helps in arc extinction, which is just a fancy way of saying that the oil helps put out those little electrical sparks that happen when you turn the switch on or off. Without this oil, those sparks could cause some serious damage.

Plus, the oil keeps everything running smoothly and ensures the switch lasts longer by reducing wear and tear.

Where Can You Use the WSLII3-125-10?

This Tap Changer Oil Immersed Load Break Switch can be used in various settings. It’s perfect for both end power distribution systems and ring-network power distribution systems, making it super versatile. Need more configurations? No problem! This switch can be customized for specific power setups, which makes it even more useful for different industries.

Why You Should Care: The Benefits

Let’s get real. Why does this load break switch matter? For starters, it makes your power system safer and more reliable. If you’re dealing with high voltages and complex power networks, you want a switch that can handle the load-literally. Here’s why the WSLII3-125-10 is worth your attention:

• Safety First: With its oil-based insulation and arc extinction system, you won’t have to worry about damaging sparks.
• Easy Operation: Two positions-ON and OFF. That’s it! You don’t need to be an electrical engineer to figure this out.
• Durable Design: The spring mechanism ensures the switch lasts a long time, reducing the need for constant replacements.
• Adaptability: Whether it’s a transformer with limited space or a complex ring-network system, this load break switch fits in seamlessly.

Installation: Easy Does It

One thing you’ll appreciate about the Tap Changer Oil Immersed Load Break Switch is that it’s pretty easy to install. You just need to follow a few simple steps, and you’re good to go.

Before you begin, make sure the switch is in good condition. Test it to see if it moves smoothly. If everything looks fine, you can go ahead with the installation. The load break switch is typically installed on the side of the transformer’s oil tank. Make sure you fasten everything tightly to avoid any issues later on.

Also, ensure the holes align perfectly when attaching the switch. Misaligned holes can cause the panel to deform, which could lead to operational problems. And nobody wants that.

Once installed, test the switch by turning it ON and OFF to make sure it moves correctly and the indicator shows the right position.

Safety Tips: What You Need to Know

Even though the load break switch is designed for safety, it’s essential to follow a few rules to avoid any mishaps.

1. Don’t Overload: This switch is designed for specific voltage and current levels. Don’t try to operate it with more load than it can handle, or you’ll risk damaging it.
2. Use the Right Tools: Always use a special insulated operating arm to turn the switch. This ensures you stay safe while operating it.
3. Check Each Move: After every 90-degree turn, ensure the panel adjusts correctly before making another move. You don’t want to rush and cause any unnecessary strain on the mechanism.

Why This Load Break Switch is a Game Changer

So, why should you consider buying the Tap Changer Oil Immersed Load Break Switch (WSLII3-125-10)? Simply put, it’s an industry leader. Whether you’re a business working with power distribution or just want a reliable switch for your transformer system, this product delivers in terms of safety, durability, and ease of use.

It’s designed for adults aged 18-40 who may not be experts in electrical systems but still need something reliable and easy to operate. Whether you’re using it for industrial power systems or a smaller setup, the WSLII3-125-10 won’t disappoint.

conclusion

If you’re looking for a dependable and easy-to-use load break switch that offers excellent safety features and durability, the Tap Changer Oil Immersed Load Break Switch (WSLII3-125-10) should be at the top of your list. It’s straightforward, effective, and built to last, making it a fantastic addition to any power distribution system.
