Date：03-18-2022

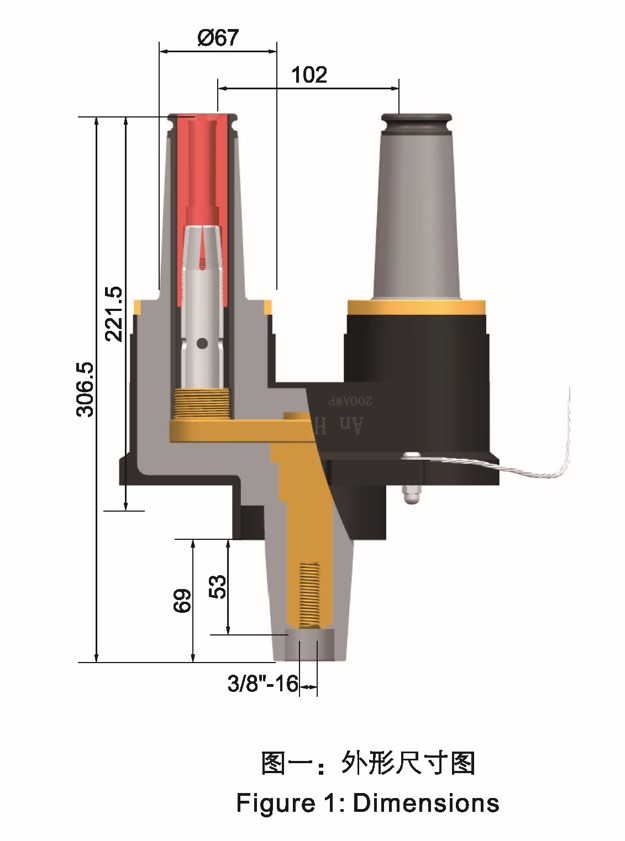

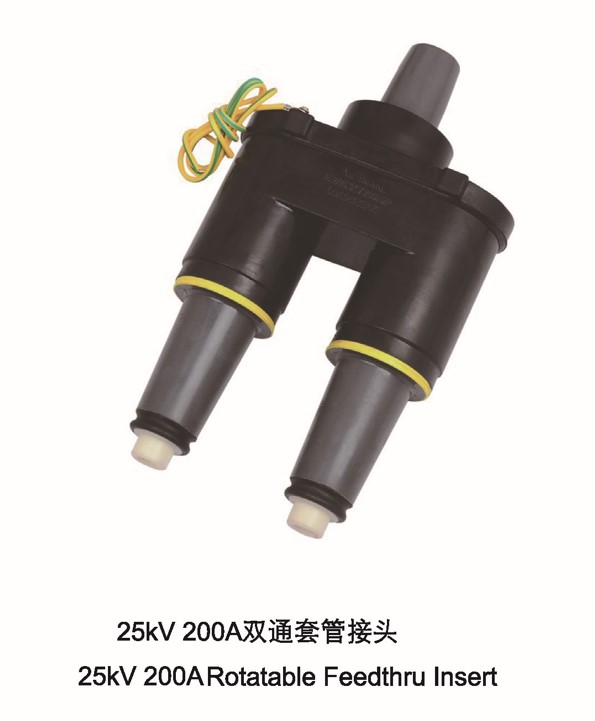

The 25kV 200A Rotatable Feedthru Insert is used to provide dual bushings from a single apparatus bushing well. It makes converting radial-feed transformers to feed thru transformers and adding in-line arrester protection both easy and practical. Its patented, built-in torque limiting ratchet prevents operators from accidentally breaking bushing well studs during installation.
The 25kV 200A Rotatable Feedthru Insert for connecting underground cable to distribution power system of pad-mound transformer, surrounding power supply branch box, using together with this is: load break elbow connector elbow surge arrester and apparatus bushing.
The Load break Eibows are molded using high quality sulfur-cured insulating and semi-conducting EPDM rubber, When mated with comparably rated products, the insert provides a fully shielded and submersible load break apparatus connection.

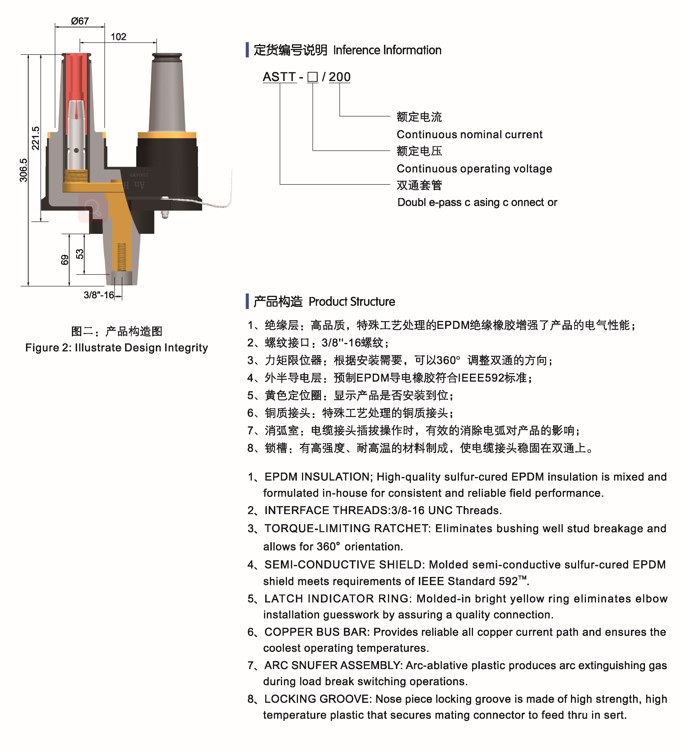

25kV 200A Rotatable Feedthru Insert latch indicator ring, located on the circumference of the bushing’s collar, eliminates the guesswork of load break elbow installation on the bushing interface. The bright yellow ring provides immediate feedback to determine if the elbow is properly installed on the bushing. if the yellow ring is completely covered by the load break elbow, it is fully”latched,” if the ring is visible, the elbow can be installed correctly before any problems can occur.
