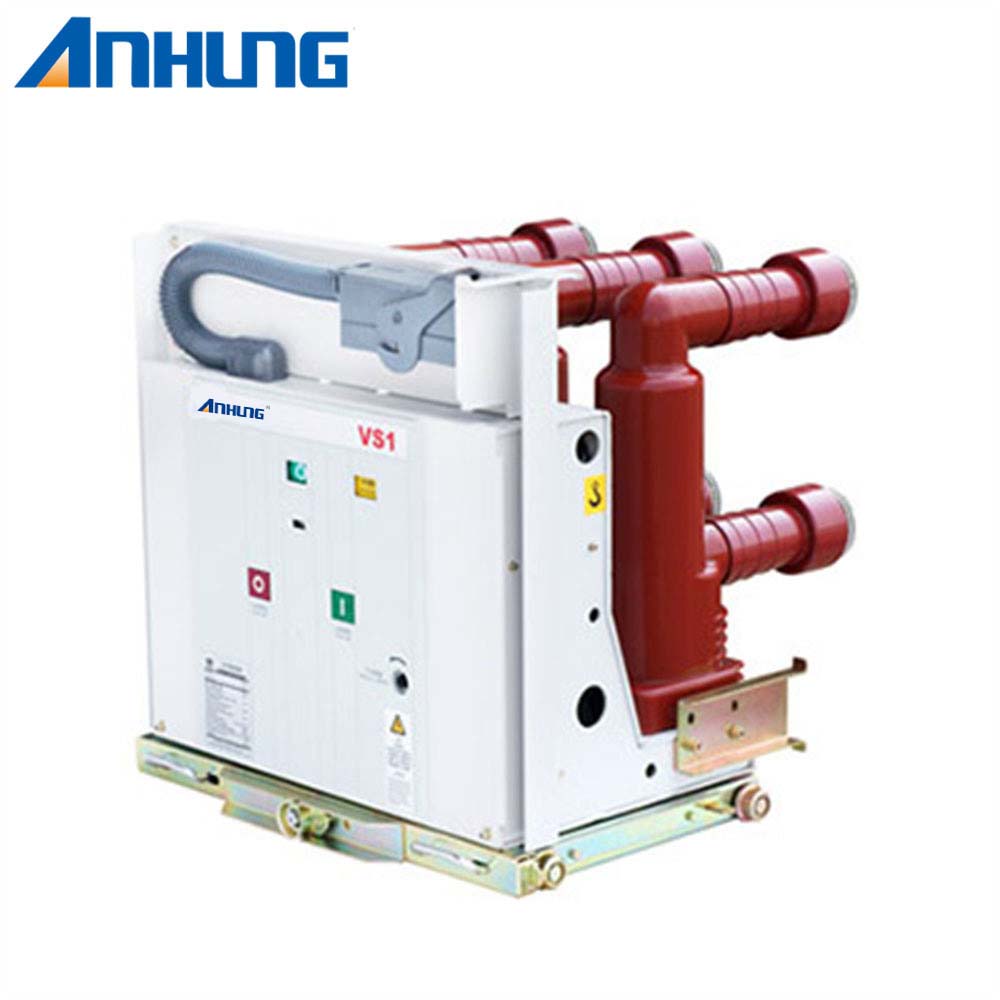

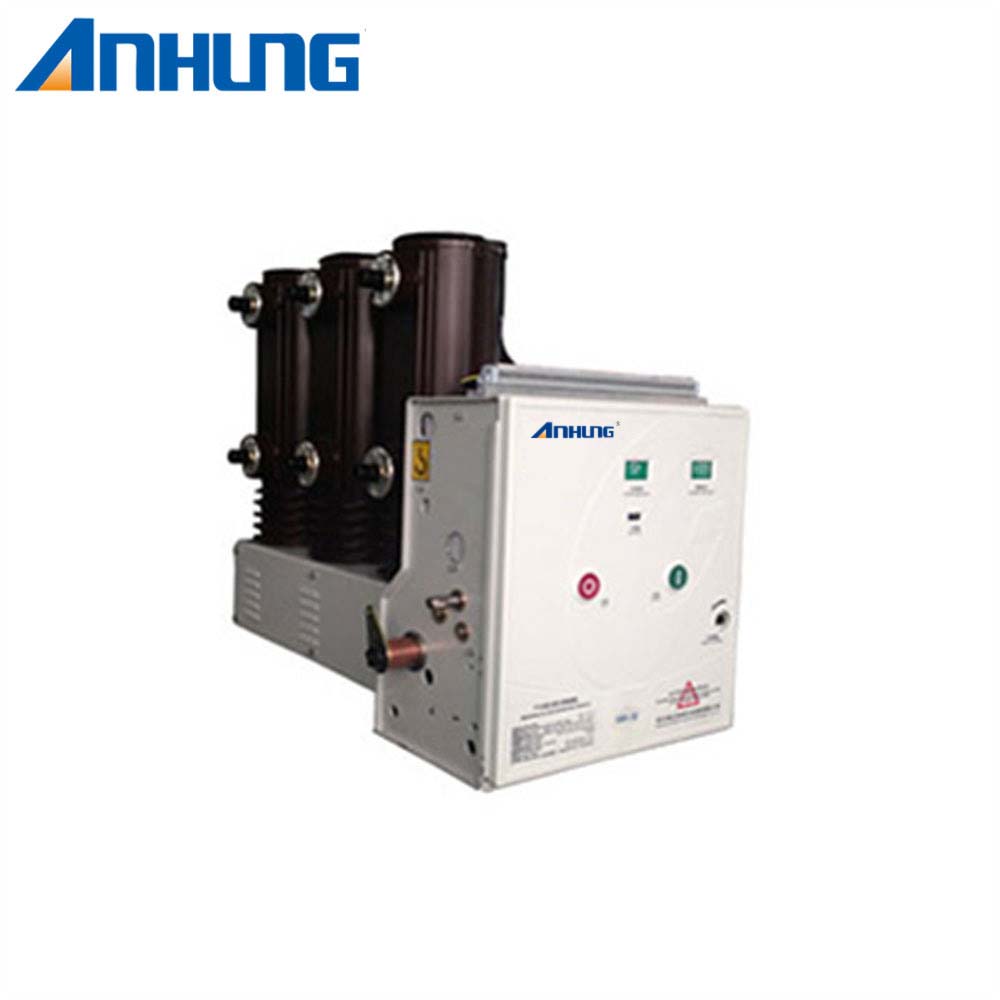

a vacuum circuit breaker is an electrical switch used to control, protect and isolate electrical circuits. Unlike traditional circuit breakers that rely on oil or gas as the arc extinguishing medium, vacuum circuit breakers use a vacuum arc extinguishing chamber as a means to extinguish the arc generated during the circuit breaking process. One of the main advantages of a vacuum circuit breaker is its ability to quickly open a circuit, minimizing damage and preventing electrical accidents.
The structural composition of a vacuum circuit breaker usually includes three main components: arc extinguishing chamber, operating mechanism and control element. An interrupter consists of two metal contacts separated within a vacuum chamber. When the circuit breaker is opened, the high dielectric strength vacuum medium ensures insulation between the contacts. However, when a fault occurs and the circuit breaker needs to trip, the contacts come together, initiating the arc-extinguishing process.
The operating mechanism is responsible for opening and closing the circuit breaker under normal and fault conditions. The mechanism utilizes various technologies such as stored energy (springs) or electromagnetic actuators to generate the required mechanical force. On the other hand, the control elements ensure proper coordination and synchronization of the operating mechanisms. They include auxiliary switches, relays and timers and perform functions such as trip coil activation, fault detection and fault clearing. These interlocking mechanisms ensure the safe and reliable operation of the vacuum circuit breaker.
In summary, vacuum circuit breakers are an important part of electrical systems, ensuring protection of equipment and personnel from electrical faults. The structure of the vacuum circuit breaker consists of an arc extinguishing chamber, an operating mechanism and a control element, which coordinate to achieve efficient circuit breaking and arc extinguishing. Understanding its components and functions helps engineers and technicians make informed decisions when designing, installing, and maintaining electrical systems in residential, commercial, and industrial applications. By leveraging the many benefits of vacuum circuit breakers, we can ensure a safer, more reliable power infrastructure for the world.
