Understanding Loadbreak Elbow and Role in Medium Voltage Protection

A Loadbreak Elbow is a crucial component in medium-voltage electrical distribution systems, primarily used for connecting and disconnecting cables under load conditions. Loadbreak elbows are designed to ensure safe, reliable connections and disconnections in high-voltage environments. They are essential in protecting transformers, switchgears, and cables in medium voltage networks.

Among various types, the 17/50kV Loadbreak Elbow Surge Arrester stands out for its ability to mitigate overvoltage events, enhancing the resilience of medium voltage systems. Let’s dive deeper into the unique features, functions, and benefits of using loadbreak elbows, particularly the 17/50kV model with integrated surge protection.

1. What is a Loadbreak Elbow?

A Loadbreak Elbow is a high-voltage, fully insulated connector that allows for load-interrupting capability in medium voltage (MV) networks. This device provides a safe way to connect and disconnect cables from transformers, switchgear, and other critical infrastructure without de-energizing the entire system. Loadbreak elbows ensure secure, temporary connections and are commonly used in underground electrical distribution systems.

Key features of a loadbreak elbow include:

• Load-interrupting capacity: Enables safe disconnection even under load.
• Insulated design: Prevents accidental exposure to high voltage.
• Flexible configuration: Compatible with various equipment like transformers, cables, and switchgear.

The loadbreak elbow design enables it to maintain electrical integrity in high-voltage settings, ensuring continuity of power with minimal risk.

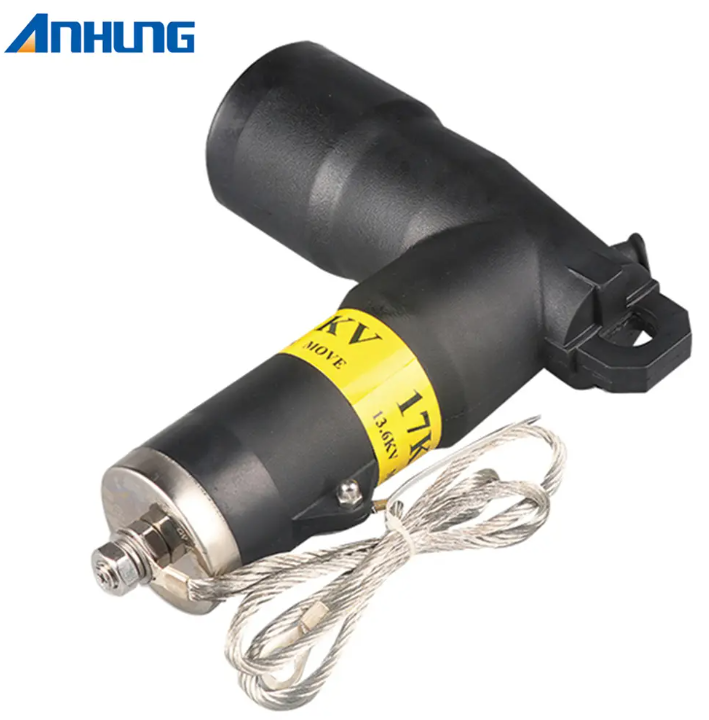

2. Features of the 17/50kV Loadbreak Elbow Surge Arrester

The 17/50kV Loadbreak Elbow Surge Arrester is a specialized version designed to protect medium voltage equipment from overvoltage. Overvoltage can occur due to factors like lightning strikes, switching surges, or power system disturbances. The 17/50kV rating signifies its suitability for specific voltage levels in medium voltage networks.

This loadbreak elbow variant is equipped with a surge arrester, which helps limit incoming overvoltage waves and reduce voltage increases caused by reflections within the system. Key features include:

• Silicone Rubber Connector Housing: Provides excellent insulation, environmental resilience, and durability.
• 200A Load Break Bushing Extender Compatibility: Designed to be installed on the 200A load break bushing extender, which is common in medium voltage systems.
• Effective Surge Protection: By absorbing and dispersing excess voltage, it protects critical components like transformers, switchgear, and cables.

3. Applications of the 17/50kV Loadbreak Elbow Surge Arrester

The 17/50kV loadbreak elbow with surge arresting capabilities is ideally suited for various medium voltage network applications. Its primary role is to protect essential components from damage due to overvoltage. Typical applications include:

• Transformers: Protects transformers from voltage spikes that can damage windings and insulation.
• Switchgear: Reduces the risk of arc flash or dielectric breakdown due to high-voltage transients.
• Cables: Limits voltage increases along cables, which can otherwise lead to insulation breakdown and premature aging.

By preventing excessive voltage, the loadbreak elbow surge arrester extends the lifespan of these components, minimizes maintenance costs, and improves system reliability.

4. Benefits of the Silicone Rubber Connector Housing

The silicone rubber connector housing used in the 17/50kV Loadbreak Elbow Surge Arrester offers significant advantages over traditional materials:

• Superior Insulation: Silicone rubber provides excellent insulation properties, essential for high-voltage applications.
• Enhanced Durability: Resistant to environmental stressors such as moisture, UV radiation, and temperature extremes, silicone rubber housing ensures the long-term reliability of the loadbreak elbow.
• Thermal Stability: Silicone rubber performs well under a wide range of temperatures, maintaining its insulating properties and structural integrity even under high-stress conditions.

This robust housing material contributes to the loadbreak elbow’s resilience in harsh environments, making it suitable for outdoor applications and underground installations where exposure to moisture and temperature fluctuations are common.

5. The Role of the Surge Arrester in Voltage Protection

Surge arresters play a critical role in managing and dispersing excess voltage. In the 17/50kV Loadbreak Elbow Surge Arrester, the surge arrester component serves two essential functions:

• Limiting Incoming Overvoltage Waves: High-voltage surges, especially those caused by external events like lightning, can lead to equipment failure. The surge arrester dissipates these high-energy waves, preventing them from entering the network.
• Reducing Voltage Increase by Reflection: In medium voltage networks, voltage reflections can amplify due to sudden impedance changes. The surge arrester mitigates this by absorbing the reflected energy, stabilizing voltage levels.

This dual functionality of overvoltage protection and reflection damping is particularly valuable in maintaining a stable and reliable medium voltage network.

6. Installation on the 200A Load Break Bushing Extender

The 200A Load Break Bushing Extender is an accessory commonly used in conjunction with loadbreak elbows. It provides a compatible interface that ensures secure connections and stable performance. When the 17/50kV loadbreak elbow surge arrester is installed on the 200A load break bushing extender, it enhances the overall functionality by allowing:

• Increased Connection Points: The bushing extender provides additional connection options for complex network configurations.
• Enhanced Flexibility in Operation: Allows for safe, efficient switching and load interruption without compromising the system’s integrity.

The combination of the loadbreak elbow surge arrester with a bushing extender enables more adaptable and resilient network designs.

7. Advantages of Using a 17/50kV Loadbreak Elbow Surge Arrester

The 17/50kV Loadbreak Elbow Surge Arrester offers several key benefits, particularly for medium voltage applications:

• Improved Network Resilience: By managing overvoltage events, it prevents unexpected equipment failures and prolongs the service life of transformers, switchgear, and cables.
• Enhanced Safety: Surge arresters mitigate the risks associated with high-voltage transients, reducing the likelihood of arc flash and insulation breakdown.
• Reduced Downtime and Maintenance: Protecting equipment from voltage spikes reduces the need for frequent repairs or replacements, minimizing operational downtime.
• Cost-Effective Solution: With extended equipment life and lower maintenance costs, this loadbreak elbow configuration offers a cost-effective solution for medium voltage network protection.

8. Why Choose a Loadbreak Elbow with Surge Arrester?

Investing in a loadbreak elbow with an integrated surge arrester offers several advantages for utility companies, industrial facilities, and other medium voltage network operators:

• Versatility in Applications: Suitable for both outdoor and underground installations, as well as in substations, transformers, and switchgear.
• High Performance Under Harsh Conditions: The combination of silicone rubber housing, overvoltage protection, and compatibility with standard bushing extenders make it reliable in diverse environments.
• Compliance with Safety Standards: Loadbreak elbows with surge arresters meet stringent safety standards, providing assurance of reliable protection against overvoltage hazards.

Conclusion

The 17/50kV Loadbreak Elbow Surge Arrester is a critical component for medium voltage network protection, specifically designed to mitigate overvoltage events and protect valuable equipment. Featuring silicone rubber housing, compatibility with the 200A load break bushing extender, and dual-function surge protection, this loadbreak elbow ensures resilience, reliability, and safety in demanding environments.

For utility companies and industries relying on medium voltage networks, investing in this loadbreak elbow is a cost-effective way to prevent overvoltage damage, reduce maintenance needs, and ensure continuous operation across the network. Whether used in transformers, switchgear, or cables, the 17/50kV loadbreak elbow surge arrester proves indispensable for safe and efficient power distribution.
