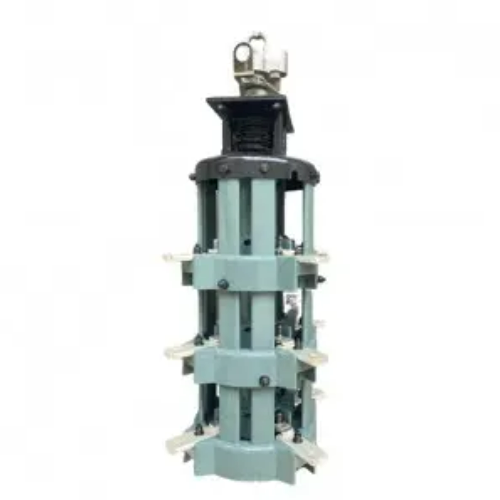

Normally, homes, schools, and businesses run on electricity; however, there are a few devices behind the scenes that enable safe management and control of electricity. An example of such a device is the 38kV 630A Type Four-Position Oil-Insulated Loadbreak Switch. This article, therefore, will share information about what this switch entails, how it works, its applications, and more.
What is a Loadbreak Switch?
The Loadbreak Switch is an electrical switch that has been developed specially to securely interrupt the flow of electricity without hazardous sparks or arcs. Such an application becomes very important with high voltages, as in most power distribution systems. This particular 38kV 630A loadbreak switch deals with voltage up to 38000V and currents as high as 630 amperes. Thus, it also finds relevance in large systems of electricity.
Understanding the Fundamentals of the 38kV 630A Loadbreak Switch
The following are the features of the 38kV 630A loadbreak switch:
• High Voltage Capacity: A high voltage capability makes this switch suitable for industrial and commercial applications.
• Insulation Oil: It uses transformer oil as an insulant that assists in preventing electrical faults and arc quenching.
• Ease of Operation: The switch is designed with two positions, ON and OFF.
• Flexible Configuration: It can be installed in different power distribution systems, such as the end power distribution system and ring-network system.
How Does the 38kV 630A Loadbreak Switch Work?
The Role of Transformer Oil
In this switch, transformer oil plays a very important role. This is because it plays the dual role of:
• Insulation: Because the oil acts as an insulator, electricity within the switch will not leak outside, causing a short circuit.
• Arc Extinction: In case there is an electrical arc formed when the switch is turned off, the oil will help in extinguishing the arc, hence making the switching process safer.
Operating Mechanism
Loadbreak Switch Works under a very simple principle.
ON Position: A clockwise turn of the handle, through the switch, connects the electrical circuit, hence passing the current.
Off Position: The handle turned in anticlockwise direction disconnects the circuit at the off position, hence stopping the flow of electricity. This is done within a 90-degree revolving radius, helpful in operating the switch correctly and safely.
Applications of the Loadbreak Switch
The 38kV 630A Loadbreak Switch has wide applications and can hence be applied in a variety of settings, including:
1. End Power Distribution Systems
These are the systems that supply power to the very last consumer. For instance, houses or other establishments. A loadbreak switch is vital in switching on and off the power supply whenever the need arises.
2. Ring-Network Power Distribution Systems
Within the ring-network system, the travel of electricity is circular. The provided structure allows facilities for backup paths of electricity. In other words, if one path gets destroyed, then the facility of reaching power to users continues through another path. The loadbreak switch handles such systems.
Installation and Maintenance Considerations
The right installation and maintenance is highly relevant to the safe and effective functioning of the loadbreak switch.
Steps for Installation
• Mechanism Checking: The smooth travel of the switch accurately should be checked before installation.
• Drying: The switch needs to be dried at a temperature of 65±5ºC for 24 hours to operate correctly.
• Final Checks: An "open" and "close" operation is to be conducted after installation; this will verify that the switch operates satisfactorily and indications of position are proper.
Maintenance Tips
• Inspect the switch for any wear or damage periodically.
• Check oil level and ensure there is no leakage.
• Regular testing of the switch is to be done to ensure it can carry safely the rated current.
Safety Precautions
Safety is the most essential activity that comes in the way of handling high voltage equipment. Here are some necessary safety tips:
• Rated Current Only: This is what it says- only a rated current should be opened or closed by the load break switch. Operation outside its rated capacity can easily lead to dangerous situations.
• Use Insulated Tools: The specially insulated operating arm should always be used to operate the switch. This keeps you safe from many disastrous shocks while operating any such equipment.
• Emergency procedures: There should be clear emergency procedures to be followed in case there are electrical failures and accidents.
Conclusion
The 38kV 630A four-position oil-insulated loadbreak switch is a rather important device used in managing high voltage electricity. Its design for transformer oil insulation and arc extinction ensures safe and reliable operation.
