Product Introduction

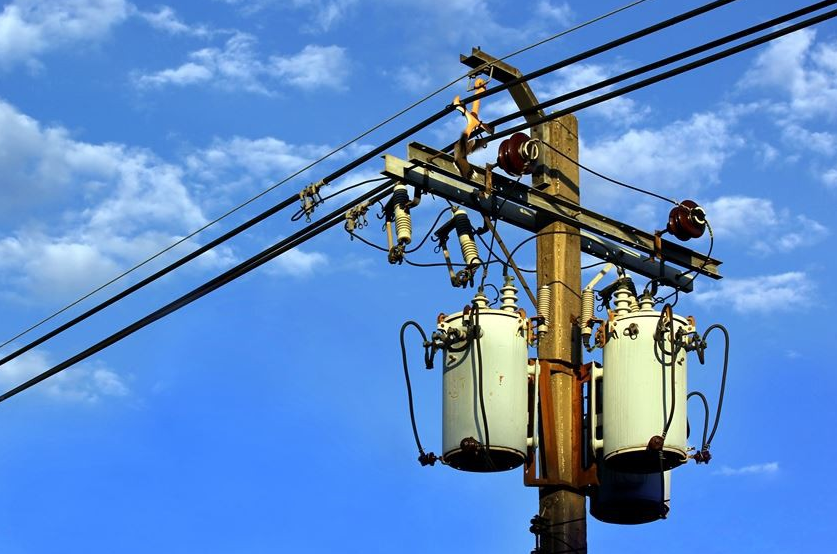

Anhuang supplies power pole mounted transformer. Including single phase and three phase pole mounted transformer. It can reduce the length of low-voltage distribution lines, reduce line losses, and improve the quality of power supply. The transformer is designed with high efficiency and energy-saving coil core structure. The transformer is characterized by small volume, small infrastructure investment, reduced radius of low-voltage power supply and more than 60% loss of low-voltage line. Adopts fully sealed structure, with strong overload capacity, high reliability of continuous operation and simple maintenance. It is suitable for rural power grid, remote mountainous areas, scattered villages, agricultural production, lighting and power consumption, and can also be used for energy-saving transformation of railway and urban power grid. Our transformer was designed with advanced technology and adopts high quality material and components which result in reliable quality and long operation time.

Anhuang ensure each one of our delivered transformers had passed the full acceptance test and we remains 0 fault rate record for more than 10 years so far, oil immersed power transformer is designed in accordance with IEC, ANSI and other major international standards.

Scope of Supply

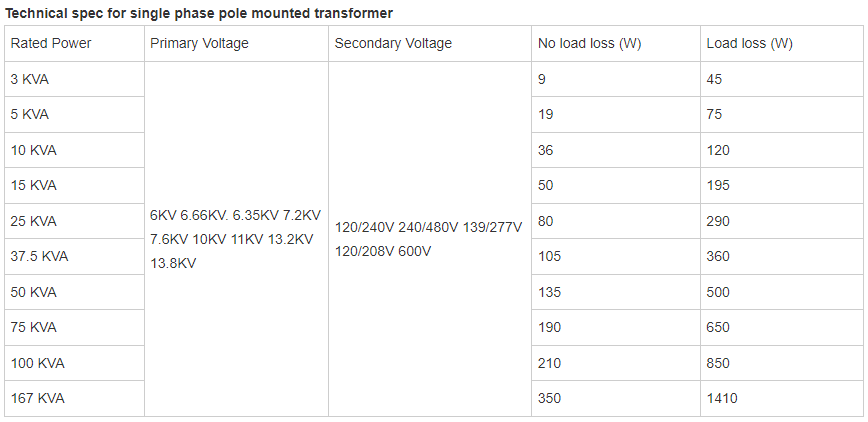

Product: Single phase pole mounted transformer

Phase: Single

Rated Power: Up to 167KVA

Primary Voltage: Up to 13.8KV

Product: Three phase pole mounted transformer

Phase: Three

Rated Power: Up to 1000KVA

Primary Voltage: Up to 35KV
